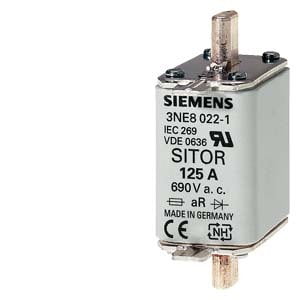

Fuse 125A, 690VAC Model: 3NE8022 Size: NH00 SIEMENS
35.500BD
Out of stock
Semiconductor protection fuses
Operating class aR (partial-range semiconductor protection)
With blade contacts, for installation in NH fuse bases or load switches
SITOR NH fuse links are designed for the overload and short circuit protection of cables, wires and power rails as well as for semiconductor protection
Operating class aR (partial-range semiconductor protection)
With blade contacts, for installation in NH fuse bases or load switches
SITOR NH fuse links are designed for the overload and short circuit protection of cables, wires and power rails as well as for semiconductor protection
Product Details
Current / for AC / rated value A 125
Size of the fallback-system / acc. to DIN EN 60269-1 NH00
Supply voltage
• for AC / rated value V 690
• for DC V 440
Switching capacity current
• in accordance with IEC 60947-2 / rated value kA 71
Design of an identification indicator others
Ambient temperature °C -20 … +50
Varying load factor (WL) 0.95
