Temperature Screening Thermographic Bullet Camera
Non-returnable
5,800.000BD
Out of stock

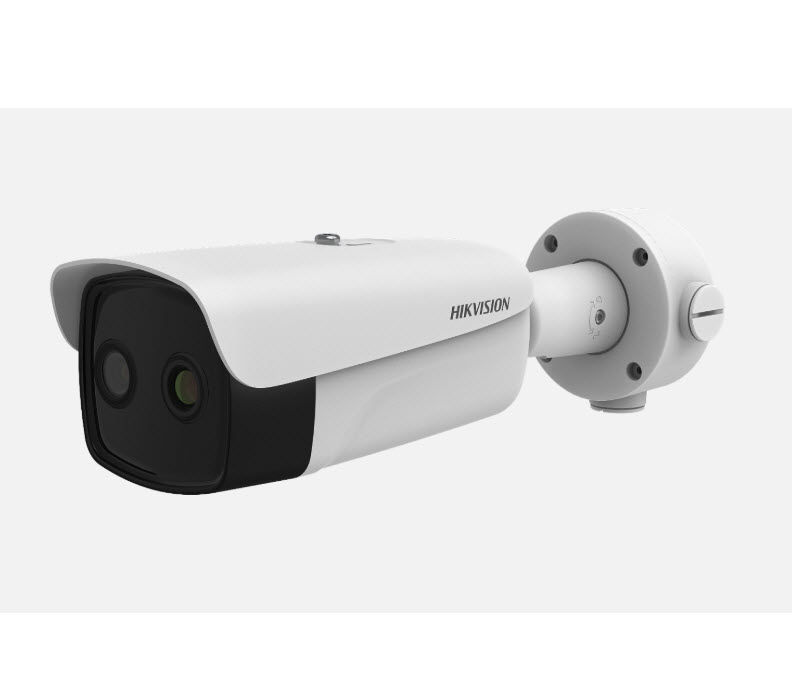

Hikvision DS-2TD2636B Thermographic Bullet Body Temperature Measurement Camera is able to measure an object's temperature at a high accuracy in real time. It is capable of discovering and tracking people with a higher body temperature in a crowded public area. It can be widely used in places such as customs, airports, schools and hospitals for inspection and quarantine purposes.
- High sensitivity thermal module with 384 x 288 resolution
- NETD is less than 40 mk (@25° C, F#=1.0)
- Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
- Reliable temperature detection alarm
- High quality optical module with 4 MP resolution
- Bi-spectrum image fusion, picture-in-picture preview
Product Details
| Make | Hikvision |
|---|---|
| Manufacturer | Hikvision |
| Model code | DS-2TD2636-15 |
| Chip Inch Size | 1/3 inch |
| Colour Type | Colour / Monochrome |
| Resolution | 1920 x 1080 resolution |
| Digital (DSP) | Yes |
| Specialist Type | Thermal |
| Sensitivity Lux | 0.0002 ~ 0.002 lux |
| Auto Iris | Yes |
| Direct Drive | Yes |
| Electrical Specifications | Voltage: 12 V DC, 24 V AC Power Consumption: 10 W |
| Motion Activated | Yes |
| High Speed | Yes |
| Focal Length mm | 8 |
| Wide Dynamic Range | Yes |
| Picture Elements HxV | 1920 x 1080 |
| Network Properties | Image Frame Rate: 25 ~ 50 fps Interface: 1 RJ45 10M/100M Network Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1 ~ 1/100,000s |
| Signal Mode | PAL, NTSC |
| Zoom | Yes |
| Y/ C (Video Output) | 1.0V [p-p]/75Ω |
| Compression Type | H.265, H.264, MJPEG, H.265+, H.264+ |
| Physical Specifications | Weight g: 1,550 Dimensions mm: 314 x 104 x 104 |
| Environmental Specifications | Protection: IP66 Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: 0 ~ 90 |
| System Requirements | Web Browser: IE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac) |
| Additional info |
|
