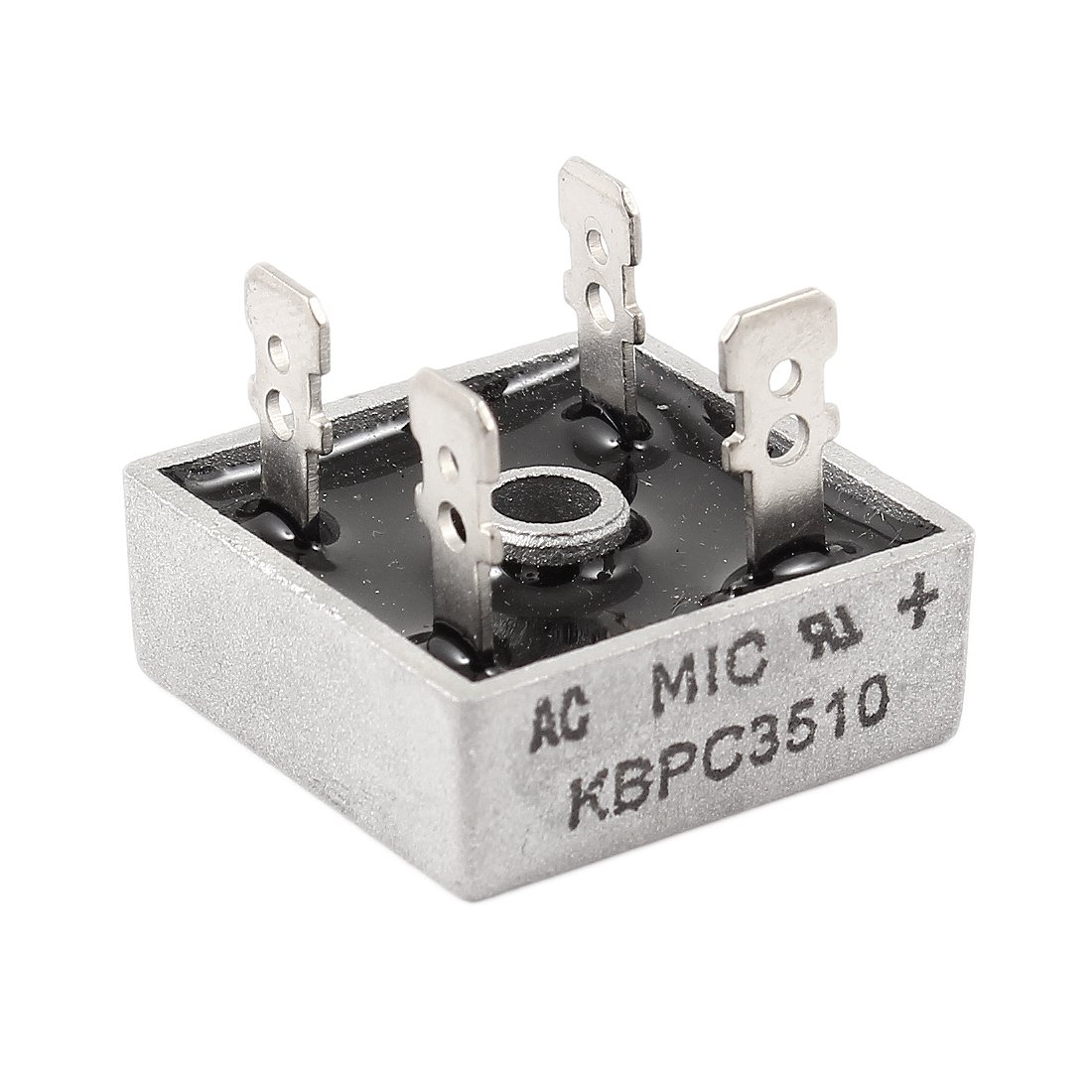

SINGLE-PHASE BRIDGE RECTIFIER MIC 35A 1000V
BD 3.500
Model: Kbpc5010; forward current: 35 A.
Material: resin, metal; silver colour.
Repetitive reverse voltage: 1 KV.
Terminal size: 0.512 x 0.236 in. 12.7 x 0. 24.0 in (length x width).
Body size: 1,102 x 1,102 x 0.433 in. 1.0 x 0.4 in. 1.0 in x 0. 4.0 in (length x width x height).
Mounted Hole Diameter:: 5. 0.197 in. 2.0 in.
Package Contents: 6 Single Phase Bridge Rectifiers.
Material: resin, metal; silver colour.
Repetitive reverse voltage: 1 KV.
Terminal size: 0.512 x 0.236 in. 12.7 x 0. 24.0 in (length x width).
Body size: 1,102 x 1,102 x 0.433 in. 1.0 x 0.4 in. 1.0 in x 0. 4.0 in (length x width x height).
Mounted Hole Diameter:: 5. 0.197 in. 2.0 in.
Package Contents: 6 Single Phase Bridge Rectifiers.
Choose Quantity
Product Details
- Features:
- miniature dimensions, welding technique, under the protection of vacuum and hydrogen gas.
- Glass passivated diode chip, excellent strength and volume ratio, heat conductive sealing package.
- This bridge rectifier features single phase, half wave, low power loss, low reverse leakage current.
- Electrically insulated metal case for maximum heat dissipation, through hole mount type. Ideal for printed circuit board use.
- Applications:
- rectifying current,
- industrial automatic control,
- digital controlled machine and sender control system
