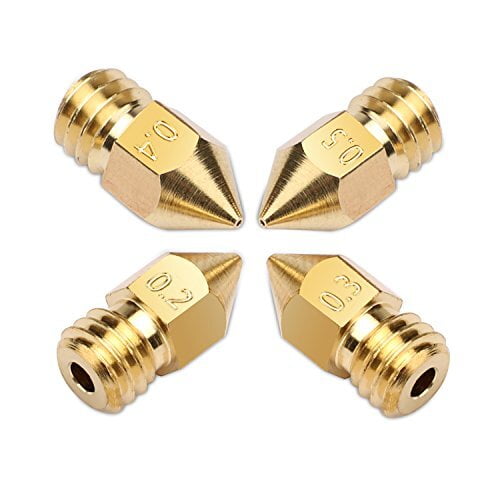

Extruder Nozzle Print Head
Features:
1. Designed for MK8 Markbot 3D Printer. 2. Compatible with all 1.75mm printers. 3. External M6 threaded connection.
Specifications:
Item Type: Printer Brass Nozzle Material: Brass Color: As the Picture Shown Working Temperature: 280 Installation Type: External Thread Connection Nozzle Precision: 0.1mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm, 1.0mm Input Diameter: 1.75mm Size: 13*5.8mm
Package Included:
1pc* Printer Brass Nozzle
How to replace nozzles?
Step 1: Turn on 3D printer, heat the nozzle and heat block to the target temperature. Step 2: After heat finished, turn off printer, USE SPANNER to hold heat block, USE SOCKET SCREWDRIVER to screw old nozzle out. Attention not to touch the hot old nozzle by hands. Step 3: Put new nozzle to socket screwdriver, keep spanner holding heat block, screw nozzle in, must be tight and it is done. Note: After replacing the nozzle, please recalibrate the distance between nozzle and build plate to ensure the quality of print parts.
