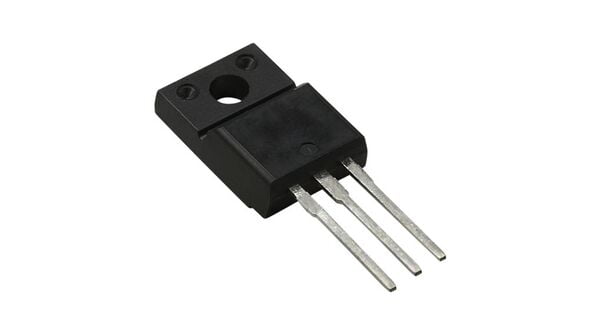

STF3NK80Z, Transistor MOSFET N-Channel, 800V, 2.5A
Non-returnable
BD 3.000
MOSFET,N,TO-220FP ,Transistor Polarity:N Channel ,Continuous Drain Current Id:2.5A ,Drain Source Voltage Vds:800V ,On Resistance Rds(on):4.5ohm ,Rds(on) Test Voltage Vgs:10V ,Voltage Vgs Max:30V ,Operating Temperature Range:-55 °C to +150 °C ,Transistor Case Style:TO-220FP ,No. of Pins:3 ,SVHC:No SVHC (15-Dec-2010) ,Avalanche Single Pulse Energy Eas:170mJ ,Current Id Max:2.5A ,On State resistance @ Vgs = 10V:4.5ohm ,Package / Case:TO-220FP ,Power Dissipation Pd:25W ,Pulse Current Idm:10A ,Termination Type:Through Hole ,Threshold Voltage Vgs Typ:3.75V ,Transistor Type: ,Voltage Vds:800V ,Voltage Vds Typ:800V ,Voltage Vgs Rds on Measurement:10V ,Voltage Vgs th Max:4.5V ,Voltage Vgs th Min:3V Marked F3NK80Z
Choose Quantity
Product Details
STF3NK80Z 3NK80 3NK80Z MOSFET N-ch 2.5A 800V
