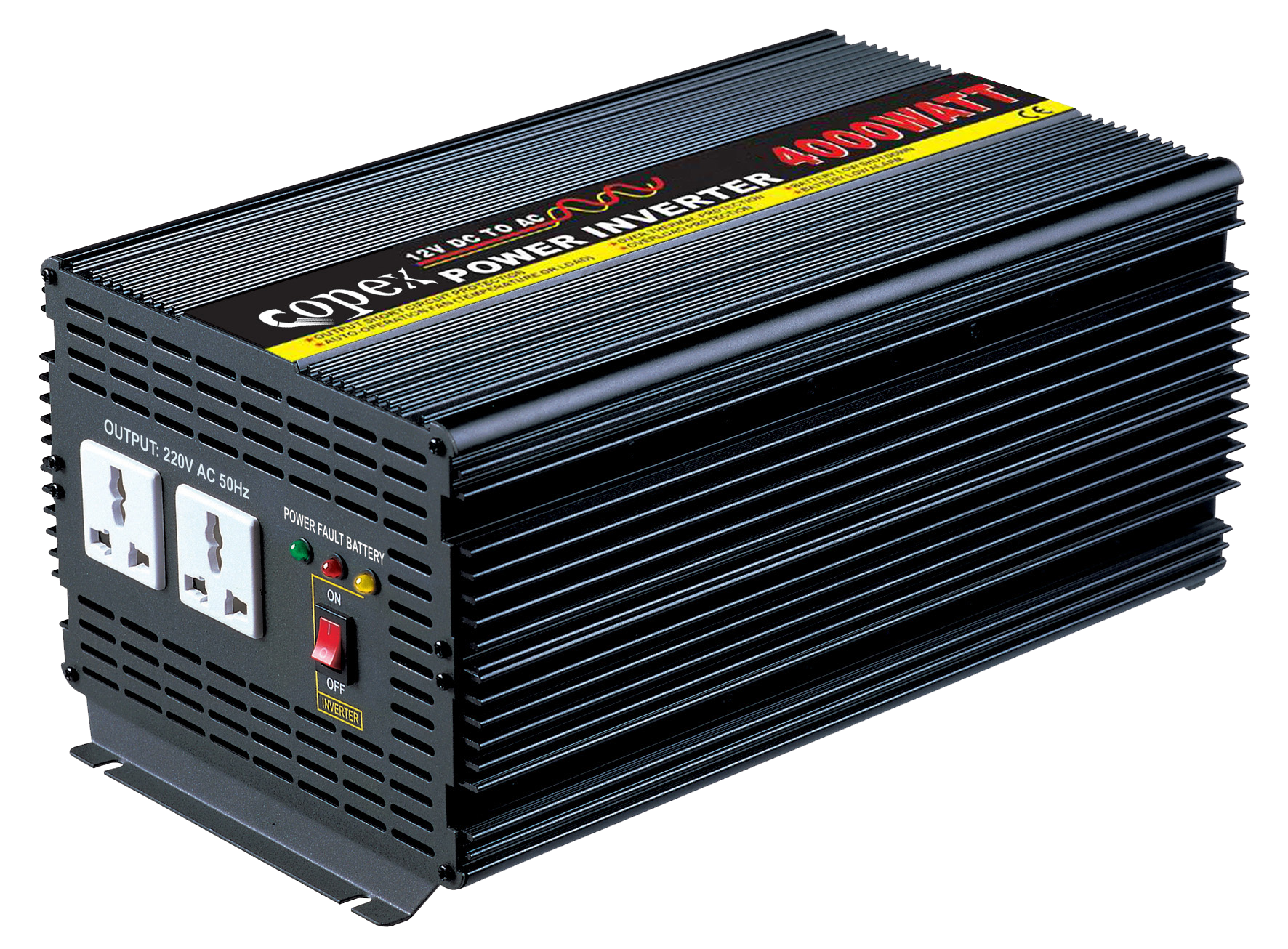

DC to AC Inverter Modified Sine Wave 4000W, Input 12VDC, Output 230VAC

For use in car, boats, trucks, trailers and mobile homes.

  Take the power inverter to portable and get power to run lamps, radios or TVs.

  In an emergency such as blackout, attach the power inverter to your car battery or portable and get power to run your appliances

TECHNICAL SPECIFICATION

Nominal Input Voltage (DC)  12V  366A

  Nominal Input Voltage Range (DC)  12V  (10-15V)

  Output Power (Continuous Watts)  4000W, 13.1A

  Output Power (Peak Watts)  8000W

  Standby Current  ≤0.7A

  Nominal Input Voltage (AC)  220-240V~

  USB Output Voltage (DC)  5.0  500mA

  Frequency  50Hz  60Hz  +/-5% Crystal Controlled

  Output Regulation  +/- 5% Intelligent Pwm

  Output Waveform  Square Sine Wave

  Low Battery-Voltage Alarm (Volts)  10.5+/-0.5V

  Low Battery-Voltage Shutdown (Volts)  10+/-0.5V

  Efficiency  85~90%

  Thermal Protect  65oC+/-5oC

  Overload  Shutdown & Alarm

  Battery Polarity Reverse  By Fuse

  Output Short  Output Short circuit Protection

  With Cooling Fan  Yes with – Auto Operation fan

  AC Outlets Plug U.S.A. Type 2AC Outlets  European Type 2AC Outlets

  Replaceable Fuse  24x25A

  Dimension (LxWxH) cm 38.5x21x15.5

  Weight 8.0 Kg
