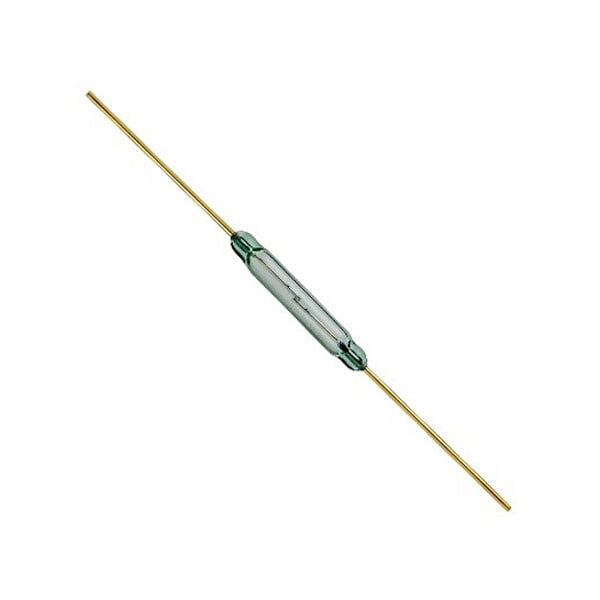

Magnetic Sensor reed switch MKA-14103
Non-returnable
BD 0.900
The reed switch contains a pair (or more) of magnetizable, flexible, metal reeds whose end portions are separated by a small gap when the switch is open.
The reeds are hermetically sealed in opposite ends of a tubular glass envelope.
The reed switch's application is to detect the opening of a door, when used as a proximity switch for a burglar alarm.
The reeds are hermetically sealed in opposite ends of a tubular glass envelope.
The reed switch's application is to detect the opening of a door, when used as a proximity switch for a burglar alarm.
Choose Quantity
Product Details
- Reed Switch; Model: MKA-10110; Contact Type: SPST (Shape A); Maximum; Contact Rating: 10W; Max. Switching Voltage: DC100V
- Min; Breakdown Voltage: DC 220V; Max. Switching current: 0.5A; max. ; Wear current: 1.0A; max. ; initial contact resistance: 100 min; insulation resistance: 10
- Operating time: 0.4 ms; bounce time: 0.4 ms; release time: 0.1 ms; resonant frequency: 4000 Hz; Max; operating frequency: 500 Hz
- Tire value: 10 - 15 at; min; desertion value: 5 at; Max; Capacitance test coil: 0.7 PF
- Lead Terminal Size (Approx) : 0.3 x 16mm/0.011" x 0.63"(D*L)(each side);Total Length (Approx) : 41.6mm/1.63"
