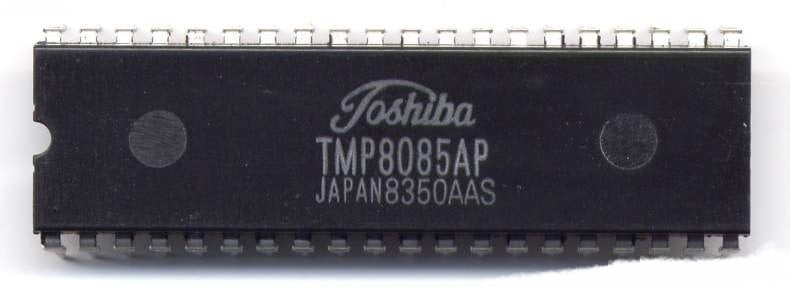

TMP8085AP (8-Bit Microprocessor)
BD 8.500
The TMP8085AP-2/TMP8085AHP-2, hereafter on referred to as TMP8085A, Ín a 8 bit micro processing unit (MPU). TMPB085A uses a multiplexed data bus. The address is split between the 8 bit address bus and the 8 bit data bus. The on-chip address latches of TMP8155P-2/TMP8156P-2 allow a direct interface with TMP8085A.
Choose Quantity
Product Details
FEATURES
0.8uSec Instruction Cycle (CLK Cycle Period @200nSec)
Single +5V Power Supply (TMP8085AP-2: 5V+5%, TMP8085AHP-2: 5V 10%)
On-Chip Clock Generator (with External Crystal or RC Nevork)
On-Chip System Controller. Cycle status information available for Large System Control
4 Vectored Interrupts (One is Non-Mask able)
Decimal, Binary and Double Precision Arithmetic
Serial In/SerialOut Port
Direct Addressing Capability ap to 64K Byte Memory Space
Compatible with Intel's 8085A
Low Power Consumption (TMP8085AHP-2: Ice max = 135mAI
