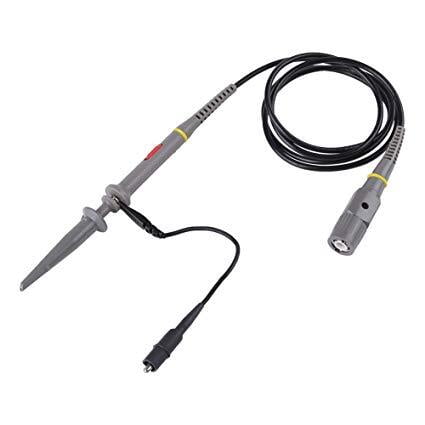

Oscilloscope Clip Probe Kit (60MHz)
BD 5.000
Speccifications:
Temperature -15°C to 70°C
Attenuation: X1, X10
Probe Body: 95mm
Coaxial Cable: 1200mm
Weight: 55g around
Input Capacity: X1: 85pF~115pF,X10: 18.5pF~22.5pF
Oscilloscope Input capacity: 15pF~40pF
Input Resistance: X1: 1Mohm±2%; X10: 10Mohm±2%
Bandwidth:X1: DC-6MHz; X10: DC-100MHz
Max input Voltage: X1: <200V DC + Peak AC; X10: <600V DC + Peak AC
Features:
1>.The PP-80 60 MHz Oscilloscope Probe Kit provides a probe tip, ground lead, several marker rings, tip locating sleeve, and adjustment tool. The probe is a passive, low-impedance attenuation probe.
2>.The probe has been designed and calibrated for use on instruments having an input impedance of 1MÎ paralleled by 20pF. It may also be recalibrated for use on instruments having an input capacitance of 15 to 40pF.
3>.The probe incorporates a two position (1X, 10X) slide switch in the compensating network and cable length of 1.2 meters.
Temperature -15°C to 70°C
Attenuation: X1, X10
Probe Body: 95mm
Coaxial Cable: 1200mm
Weight: 55g around
Input Capacity: X1: 85pF~115pF,X10: 18.5pF~22.5pF
Oscilloscope Input capacity: 15pF~40pF
Input Resistance: X1: 1Mohm±2%; X10: 10Mohm±2%
Bandwidth:X1: DC-6MHz; X10: DC-100MHz
Max input Voltage: X1: <200V DC + Peak AC; X10: <600V DC + Peak AC
Features:
1>.The PP-80 60 MHz Oscilloscope Probe Kit provides a probe tip, ground lead, several marker rings, tip locating sleeve, and adjustment tool. The probe is a passive, low-impedance attenuation probe.
2>.The probe has been designed and calibrated for use on instruments having an input impedance of 1MÎ paralleled by 20pF. It may also be recalibrated for use on instruments having an input capacitance of 15 to 40pF.
3>.The probe incorporates a two position (1X, 10X) slide switch in the compensating network and cable length of 1.2 meters.
Choose Quantity
Product Details
Package Includes:
1 x PP-60 Oscilloscope Probe
1 x Ground Lead
6 x Marker Ring
1 x Tip Locating Sleeve
1 x Adjustment Tool
1 x English Manual
1 x PP-60 Oscilloscope Probe
1 x Ground Lead
6 x Marker Ring
1 x Tip Locating Sleeve
1 x Adjustment Tool
1 x English Manual
