Sensor Hub BoosterPack

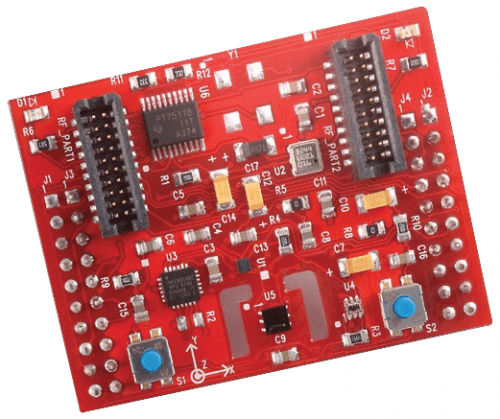

The Texas Instruments Sensor Hub BoosterPack (BOOSTXL-SENSHUB) is an add-on board designed to fit the Tiva™ C Series TM4C123G LaunchPad along with all of TI’s MCU LaunchPads. The Sensor Hub BoosterPack is a Tiva platform for evaluating the use of ARM® Cortex™-M4-based TM4C devices in sensor fusion applications, demonstrating the mathematical and algorithm computation features of the M4 architecture.

• Seven on-board sensor functions, including:
  • InvenSense MPU-9150: 9-axis MEMS motion tracking
    • 3-axis gyro
    • 3-axis accelerometer
    • 3-axis compass
  • Bosch Sensortec BMP180 pressure sensor
  • Sensirion SHT21 humidity and ambient temperature sensor
  • Intersil ISL29023 ambient and infrared light sensor
  • TI's TMP006 non-contact infrared temperature sensor

• Uses BoosterPack XL connection standard:
  • Two pairs of 10-pin headers provide standard LaunchPad interface
  • Primary header (outer row) compatible with other TI MCU LaunchPads
  • Secondary header (inner row) offers additional Tiva C Series-based expansion signals
  • 2× user input buttons and LEDs
  • TI’s wireless evaluation module (EM) interface connection

• The Sensor Hub BoosterPack also features the Air Mouse (PC HID) example application to demonstrate sensor fusion technology.

• The Sensor Hub BoosterPack is supported by TivaWare™ for C Series Driver Library and is compatible with these toolchains:
  • Code Composer Studio™ IDE
  • Keil™ RealView®
  • IAR Systems Embedded Workbench®
  • Mentor Embedded Sourcery CodeBench™
