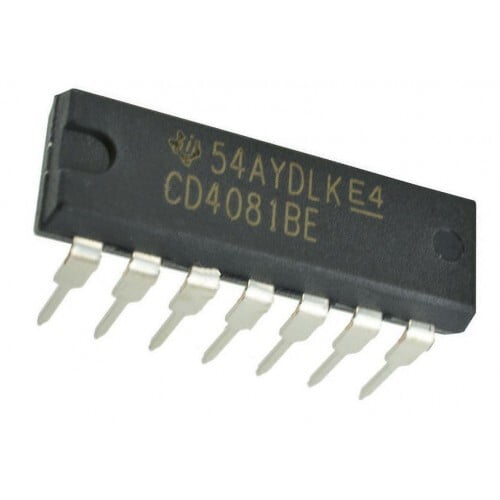

IC CD4081 (QUAD 2-INPUT AND GATE)
BD 1.400
CD4081 AND gates, provide the system designer with direct implementation of the AND function and supplement the existing family of CMOS gates.
The CD4081 types are supplied in 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes).
Features:-
- Medium-Speed Operation - tPLH, tPHL = 60 ns (typ.) at VDD = 10 V
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 µA at 18 V over full package-temperature range: 100 nA at 18 V and 25°C
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Standardized, symmetrical output characteristics
- 5-V, 10-V, and 15-V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
Choose Quantity
Product Details
Specifications:-
Parameter | Specification |
Part number | CD4081B |
Technology Family | CD4000 |
VCC (Min) (V) | 3 |
VCC (Max) (V) | 18 |
Channels (#) | 4 |
Inputs per channel | 2 |
Input type | Standard CMOS |
Output type | Push-Pull |
Features | High Speed (tpd 10-50ns) |
Data rate (Max) (Mbps) | 8 |
IOL (Max) (mA) | 6.8 |
IOH (Max) (mA) | -6.8 |
Package size: mm2:W x L (PKG) | 14PDIP: 181 mm2: 9.4 x 19.3 (PDIP|14) |
Rating | See Data Sheet |
Operating temperature range (C) | -55 to 125 |
Package Group | PDIP|14 |
