Relay 24VDC
BD 2.000

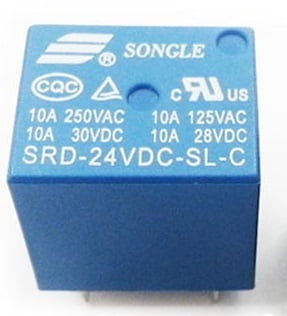

Product Name : Power Relay;
Model : SRD-24VDC-SL-C;
Mounting Form : PCB
Coil Voltage : DC 24V;
Rated Load : 10A/250VAC 10A/125VAC,10A/30VDC 10A/28VDC;
Pin Number : 5
Contact : SPDT;
Size (Approx.) : 19 x 15 x 15 mm / 0.75" x 0.6" x 0.6" (L*W*H)
Main Color : Blue;
Main Material : Plastic, Metal
Weight : 9g;
Package Content : 1 x PCB Power Relay
Model : SRD-24VDC-SL-C;
Mounting Form : PCB
Coil Voltage : DC 24V;
Rated Load : 10A/250VAC 10A/125VAC,10A/30VDC 10A/28VDC;
Pin Number : 5
Contact : SPDT;
Size (Approx.) : 19 x 15 x 15 mm / 0.75" x 0.6" x 0.6" (L*W*H)
Main Color : Blue;
Main Material : Plastic, Metal
Weight : 9g;
Package Content : 1 x PCB Power Relay
Choose Quantity
Product Details
MAIN FEATURES
• Switching capacity available by 10A in spite of small size design for highdensity P.C. board mounting technique.
• UL,CUL,TUV recognized.
• Selection of plastic material for high temperature and better chemical solution performance.
• Sealed types available.
• Simple relay magnetic circuit to meet low cost of mass production.
APPLICATIONS
• Domestic appliance, office machine, audio, equipment, automobile, etc.
( Remote control TV receiver, monitor display, audio equipment high rushing current use application.)
