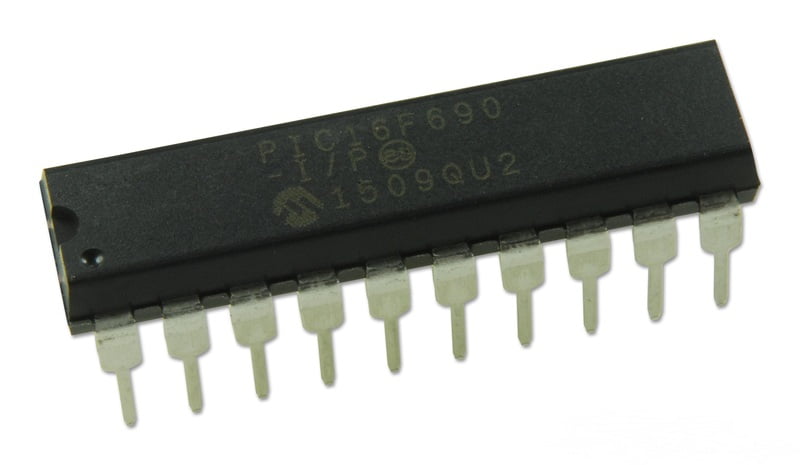

PIC16F690

Name: PIC16F690
SKU: PIC/16F/690
Price: 5.5 BHD
Availability: InStock

BD 5.500

PIC16F690 is an 8-bit PIC microcontroller, developed by Microchip, that comes with 20-pin interface. ... Operating voltage is identical to other controllers in the PIC community and ranges from 2 to 5.5 V. Program memory and RAM memory is 7K and 256 bytes respectively. EEPROM also comes with memory space around 256 bytes.

The Low Pin-count (20) PIC® Flash microcontroller products offer all of the advantages of the well recognized mid-range x14 architecture with standardized features including a wide operating voltage of 2.0-5.5 volts, on-board EEPROM Data Memory, and nanoWatt Technology. Standard analog peripherals include up to 12 channels of 10-bit A/D, an analog comparator module with two comparators, programmable on-chip voltage reference, and an Enhanced Capture/Compare/PWM (ECCP+) w/dead band delay, auto-shutdown and restart options.

Choose Quantity

+ Add to Cart

Product Details

Additional Features

4-ch PWM 10-bit
256 bytes of EEPROM data memory
Extended WDT
MPLAB® ICD 2 programming support or debugging support with optional header adapter
Precision internal oscillator-software selectable 8 MHz - 32 KHz
nanoWatt Technology
Software selectable BOR
SSP w/ I2C™Compatible Address mask option
EUSART LIN 2.0 Compatible
ECCP+ w/ PWM Steering
12 A/D Channels
2 Comparators
ULPW
Enhanced Low Power Timer 1
Timer 1 Gate Synch Latch
