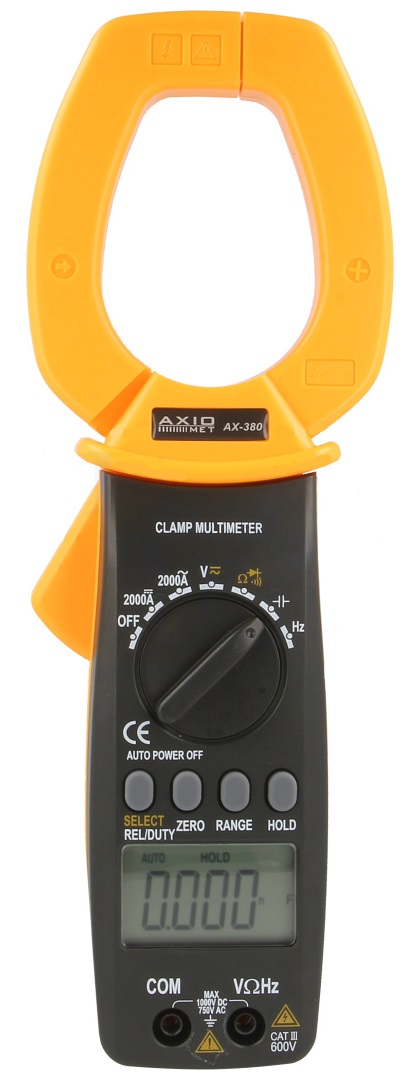

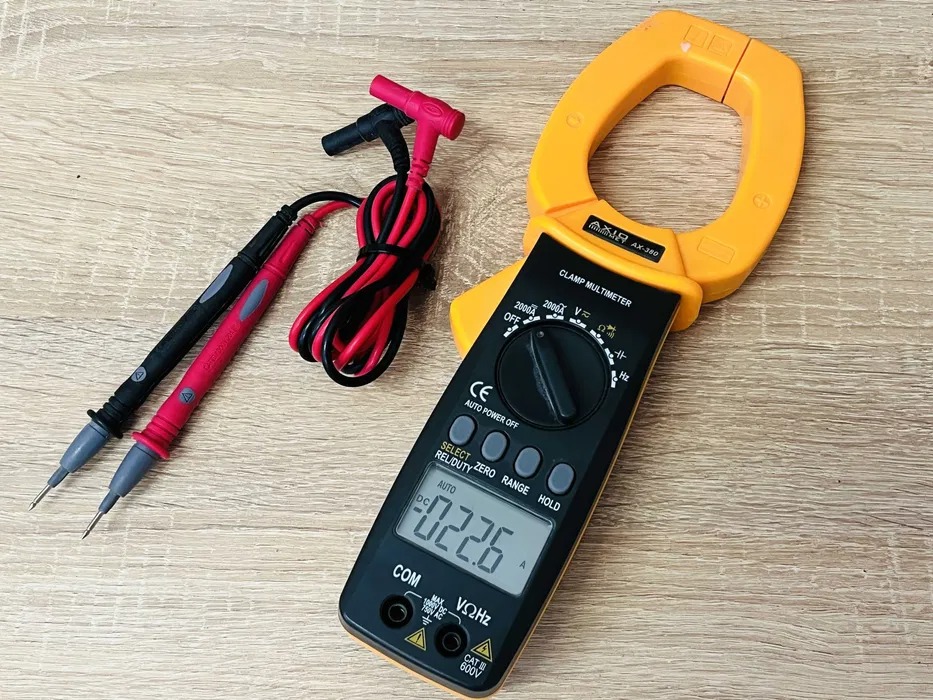

Digital Clamp Meter 750VAC/1000VDC, 2000A
BD 45.000
Out of stock
1 pieces setAC/DC digital clamp meter Øcable 55mm LCD 3,5 digit (3999) Manufacturer AXIOMET Meter type AC/DC digital clamp meter Max. diameter of measured cable 55mm Type of display used LCD 3,5 digit (3999) DC current measuring range 400/2000A DC current measuring accuracy ±(3,5% + 20 digits) AC current measuring range 400/2000A AC current measuring accuracy ±(3% + 10 digits) DC voltage measuring range 400m/4/40/400/1000V DC voltage measuring accuracy ±(0,5% + 4 digits) AC voltage measuring range 400m/4/40/400/750V AC voltage measuring accuracy ±(0,8% + 10 digits) Resistance measuring range 400/4k/40k/400k/4M/40MΩ Resistance measuring accuracy ±(0,8% + 4 digits) Capacitance measuring range 40n/400n/4µ/40µ/100µF Capacitance measuring accuracy ±(3,5% + 8 digits) Frequency measuring range 5,12/51,2/512/5,12k/51,2k/512k/100kHz Frequency measuring accuracy ±(0,5% + 4 digits) Continuity test acoustic indication Diode test yes Dimensions 275 x 96 x 50mm Weight 565g
Product Details
Technical Details
| Part Number | AX-380 |
| Item Weight | 844 g |
| Manufacturer reference | AX-380 |
