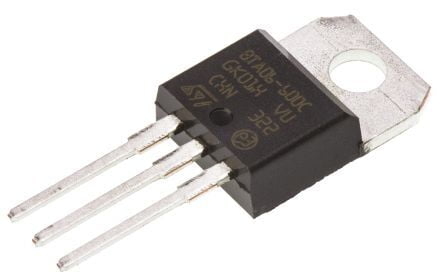

BTA06-600C 6A, 600V, TRIAC, Gate Trigger 1.3V 50mA, 3-pin, Through Hole
BD 1.600
Available either in through-hole or surface-mount packages, the BTA06 and BTB06 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers,... The snubberless and logic level versions (BTA/ BTB...W) are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500VRMS) complying with UL standards (File ref.: E81734).
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Rated Average On-State Current | 6A |
| Mounting Type | Through Hole |
| Package Type | TO-220AB Isolated |
| Maximum Gate Trigger Current | 50mA |
| Repetitive Peak Reverse Voltage | 600V |
| Surge Current Rating | 63A |
| Pin Count | 3 |
| Maximum Gate Trigger Voltage | 1.3V |
| Repetitive Peak Forward Blocking Voltage | 600V |
| Maximum Holding Current | 25mA |
| Dimensions | 10.4 x 4.6 x 9.3mm |
| Length | 10.4mm |
| Width | 4.6mm |
| Height | 9.3mm |
| Maximum Operating Temperature | +125 °C |
| Repetitive Peak Off-State Current | 0.005mA |
| Peak On-State Voltage | 1.55V |
| Minimum Operating Temperature | -40 °C |
