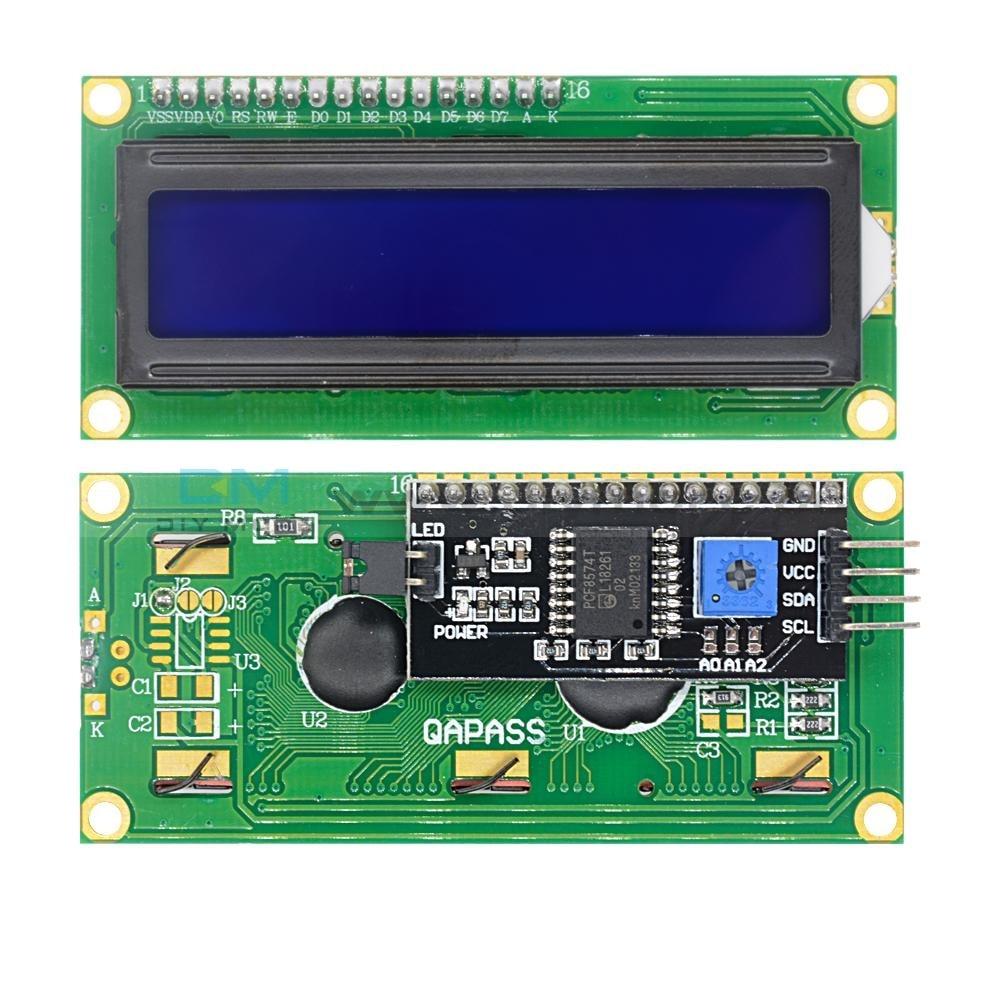

LCD Module 16x2
BD 8.500
LCDs are useful for creating standalone projects. This LCD Display utilizes an I2C interface, which means that fewer pins are necessary to use this product than would be needed with a regular 16×2 LCD Display (just four connections, VCC, GND, SDA & SCL are required). And it is backlit. I2C address is usually decimal 39, hex 0x27. These devices can sometimes be found at decimal 63, 0x3F. It is very easy to find an I2C address on Arduino by using i2c Scanner.
It is another great BLUE backlight LCD display.
As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card.
However, with this I2C interface LCD module, you will be able to realize data display via only 2 wires.
If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
Backlight (White character on Blue background).
Come with IIC interface, which can be connected by DuPont Line.
Supply voltage: 5V.
Size: 82x35x18 mm.
As the pin resources of Arduino controller is limited, your project may be not able to use normal LCD shield after connected with a certain quantity of sensors or SD card.
However, with this I2C interface LCD module, you will be able to realize data display via only 2 wires.
If you already has I2C devices in your project, this LCD module actually cost no more resources at all. It is fantastic for Arduino based project.
Backlight (White character on Blue background).
Come with IIC interface, which can be connected by DuPont Line.
Supply voltage: 5V.
Size: 82x35x18 mm.
Choose Quantity
Product Details
Features
- 16 characters wide, 2 rows
- White text on blue background
- Connection port is 0.1″ pitch, single row for easy breadboarding and wiring
- Pins are documented on the back of the LCD to assist in wiring it up
- Built in character set supports English/Japanese text, see the HD44780 datasheet for the full character set
- Up to 8 extra characters can be created for custom glyphs or ‘foreign’ language support
