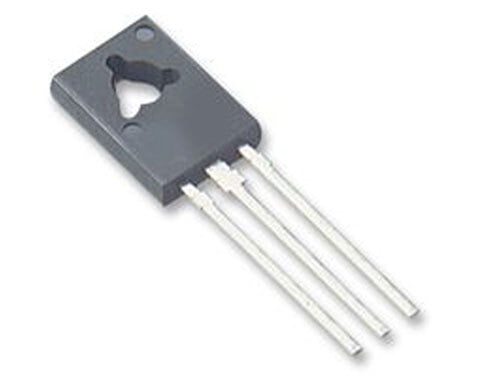

BD138 Transistor (PNP)
1.300BD
The BD138 is a PNP silicon epitaxial planar Transistor mounted in JEDEC plastic package. It is designed for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits.
- NPN complementary type is BD135
Applications
Industrial, Power Management
Choose Quantity
Product Details
BD138 Bipolar Transistor
Characteristics of the BD138 bipolar transistor
- Type - PNP
- Collector-Emitter Voltage: -60 V
- Collector-Base Voltage: -60 V
- Emitter-Base Voltage: -5 V
- Collector Current: -1.5 A
- Collector Dissipation - 12.5 W
- DC Current Gain (hfe) - 40 to 250
- Operating and Storage Junction Temperature Range -55 to +150 °C
- Package - TO-126
- Pb-Free Packages are Available (BD138G)
