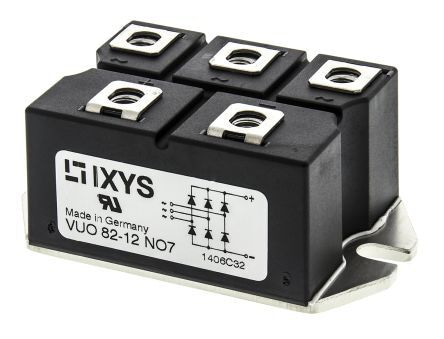

VUO82-12NO7 Diode Rectifier Bridge Single 1.2KV 90A 5-Pin PWS-D
Non-returnable
BD 29.000
Diode Rectifier Bridge Single 1.2KV 90A 5-Pin PWS-D
Features / Advantages: :
● Package with DCB ceramic
● Improved temperature and power cycling
● Planar passivated chips
● Very low forward voltage drop
● Very low leakage current
Applications:
Diode for main rectification
● For three phase bridge configurations
● Supplies for DC power equipment
● Input rectifiers for PWM inverter
● Battery DC power supplies
● Field supply for DC motors
Choose Quantity
Product Details
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Package Length | 72 |
| Mounting | Screw |
| Package Width | 42 |
| Package Height | 30 |
| PCB changed | 5 |
| Bridge Type | Three Phase |
| Configuration | Single |
| Peak Reverse Repetitive Voltage (V) | 1200 |
| Peak Average Forward Current (A) | 90 |
| Peak Non-Repetitive Forward Surge Current (A) | 810 |
| Peak Forward Voltage (V) | 1.35 |
| Peak Reverse Current (uA) | 100 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 150 |
| Automotive | No |
| Standard Package Name | PWS-D |
| Pin Count | 5 |
| Supplier Package | PWS-D |
| Military | No |
