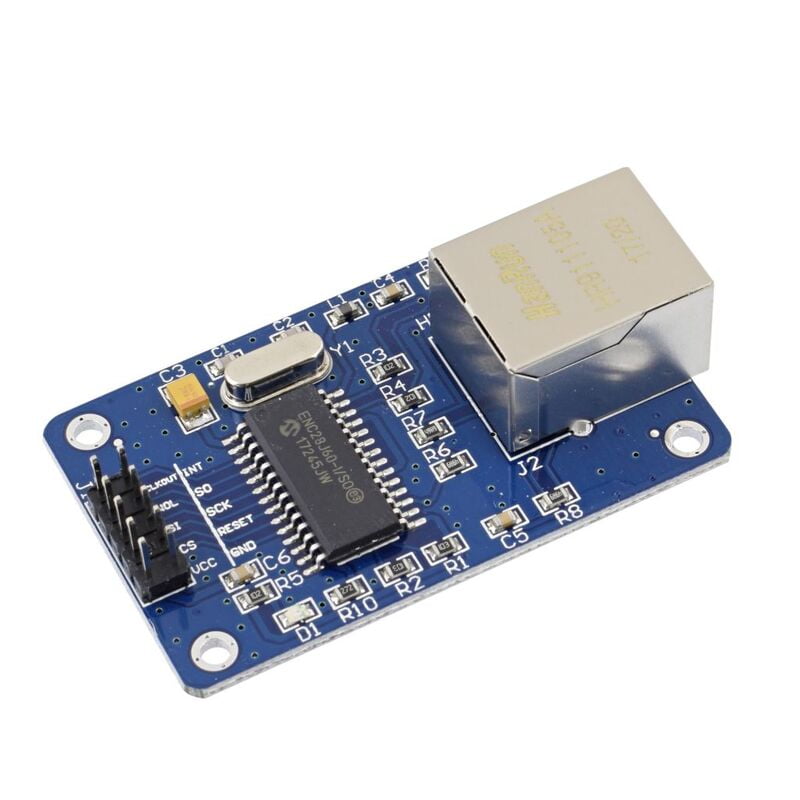

Ethernet LAN Module, HR911105A
13.500BD
This module is based on the ENC28J60 integrated circuit which contains everything necessary to add an Ethernet interface to you embedded projects.
It can be controlled using the SPI interface, making it one of the most convenient solutions for your embedded systems.
This circuit also includes an 8 KB buffer and works at 3.3 V. The inputs are 5 V tolerant, so you can interface it easily with 5 V circuits.
This module respects the IEEE 802.3 standard, is compatible with 10/100/1000 Base-T networks and it supports full and half duplex modes. It contains an integrated MAC and a 10 Base-T PHY.
The ENC28J60 Ethernet module also features programmable automatic retransmit on collision, programmable padding and CRC generation and programmable automatic rejection of erroneous packets.
FEATURES:
It can be controlled using the SPI interface, making it one of the most convenient solutions for your embedded systems.
This circuit also includes an 8 KB buffer and works at 3.3 V. The inputs are 5 V tolerant, so you can interface it easily with 5 V circuits.
This module respects the IEEE 802.3 standard, is compatible with 10/100/1000 Base-T networks and it supports full and half duplex modes. It contains an integrated MAC and a 10 Base-T PHY.
The ENC28J60 Ethernet module also features programmable automatic retransmit on collision, programmable padding and CRC generation and programmable automatic rejection of erroneous packets.
FEATURES:
- Ethernet LAN Module for Arduino/AVR/LPC/STM3
- ENC28J60 Ethernet chips
- Can be easily mounted with the MCU
- Network Interface: HR911105A
- Supply Voltage: 3.3 V
- 25 MHz crystal oscillator
- Size:56 (mm) x 34 (mm)
Choose Quantity
Product Details
Specifications:
* SPI Interface Clock Speed: up to 20 MHz
* Buffer Size: 8 KB
v Operating Voltage: 3.1 V to 3.6 V (3.3 V typical)
* 5 V Tolerant Inputs
Package Included:
1*ENC28J60 Ethernet LAN Network Module
* SPI Interface Clock Speed: up to 20 MHz
* Buffer Size: 8 KB
v Operating Voltage: 3.1 V to 3.6 V (3.3 V typical)
* 5 V Tolerant Inputs
Package Included:
1*ENC28J60 Ethernet LAN Network Module
