Analog/Digital Trainer (Portable)
330.000BD
Out of stock

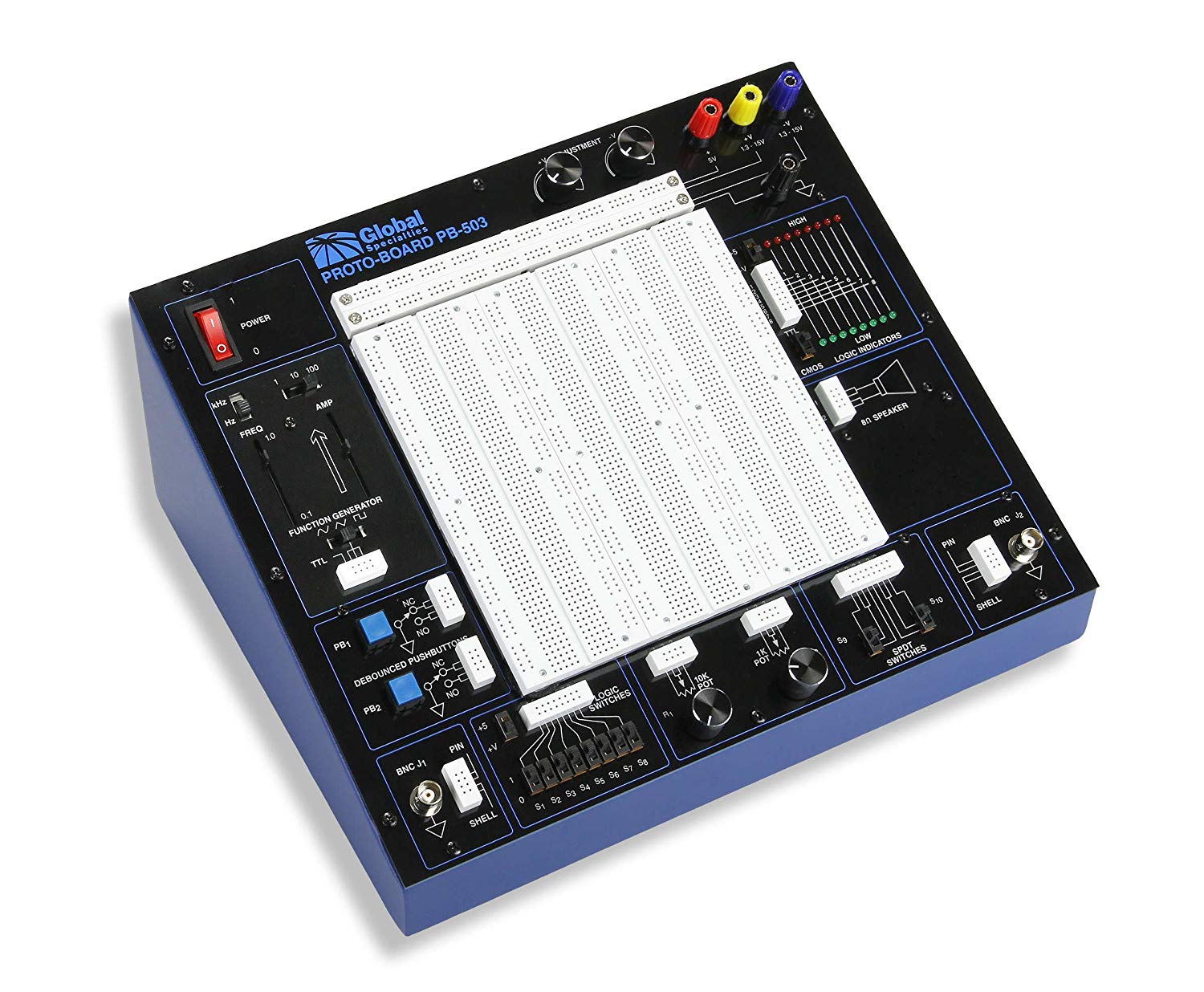

The PB-503C Analog and Digital Design Workstation is a portable robust electronics trainer suitable for all levels of electronics instruction and design. Using the PB-503C, students will learn valuable hands-on breadboarding techniques and build a solid foundation in circuit experimentation, construction and analysis. Experienced designers will find the PB-503C an invaluable instrument, providing a reliable platform for the most advanced and demanding design applications. The PB-503C can be used to construct basic series and parallel circuits to the most complicated multi-stage microcomputer circuits, incorporating the latest in industrial technology. Function Generator with continuously variable sine, square and triangle waveforms and TTL pulses. Triple output power supply offers fixed 5 VDC supply plus two variable outputs: +/- 1. 3 to +/- 15VDC. Two Digital Pulsers. Audio experimentation speaker. Removable breadboard plate with additional plates available. Multiple features in one complete test instrument saves hundreds of dollars necessary for individual units. 3-wire AC line input (117V, 60 Hz typical) with power-on indicator. Both Models are available in 220-240VAC at 50Hz. 8 LEDs, active high, 1.4 volt (nominal) threshold, inputs protected to +/- 20 volts. Two pushbutton-operated, open-collector output pulsers, each with one normally-open, one normally closed output. Each output can sink up to 250 mA. One 1 K ohm, one 10 K ohm, all leads available and uncommitted. Two BNC connectors, pin available and uncommitted, shell connected to ground. Two SPDT slide switches, all leads available and uncommitted. 8-pole DIP switch: one side of all eight switches connected and switchable to + 5V or ground, other side of all eight switches separate, available, and uncommitted. High impact molded case Enclosure. Measures 19 "width by 14" height by 7 "depth.
