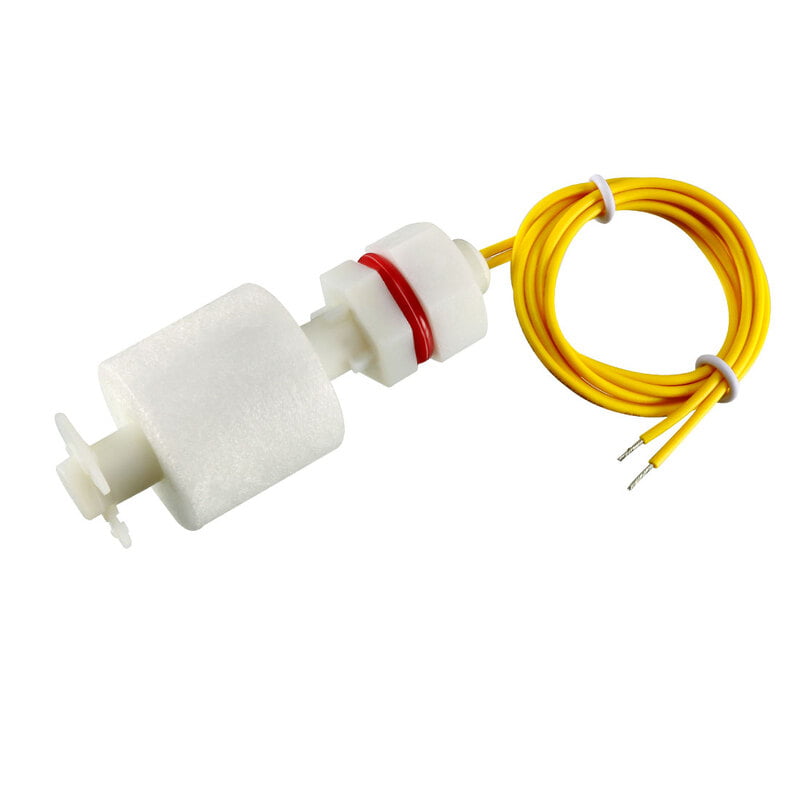

Liquid Water Level Sensor Vertical Float Switches
BD 4.000
A float switch is a device used to detect the level of liquid within a tank. The switch can actuate a pump, indicator, alarm, or other device.
It can be easily converted from normally open to normally closed by inverting the float.
Note: because the current that the switch can carry is very small (0.5A), you must use a relay or contactor when connected by a load, relay and contactor are not included here.
Characteristic:
This float switch is a simple structure, easy installation liquid level controller. It does not have a complex circuit, it will not bother, as long as the selection of material, liquid, pressure or temperature can be used in any environment.
Light weight and simple working principle, high reliability.
The versatility of this vertically mounted sensor means that it can be installed either on the top or bottom of your tank, depending on whether you want to detect that the water is rising or falling.
The float level switch is widely used in electronic, electrical, chemical, water treatment, drainage and other forms of alarm and living level control.
It can be easily converted from normally open to normally closed by inverting the float.
Note: because the current that the switch can carry is very small (0.5A), you must use a relay or contactor when connected by a load, relay and contactor are not included here.
Characteristic:
This float switch is a simple structure, easy installation liquid level controller. It does not have a complex circuit, it will not bother, as long as the selection of material, liquid, pressure or temperature can be used in any environment.
Light weight and simple working principle, high reliability.
The versatility of this vertically mounted sensor means that it can be installed either on the top or bottom of your tank, depending on whether you want to detect that the water is rising or falling.
The float level switch is widely used in electronic, electrical, chemical, water treatment, drainage and other forms of alarm and living level control.
Choose Quantity
Product Details
Specifications
The color of the cable may be different, we will send the item at random.
Product name: Water level sensor
Model number: ZP4510
Maximum contact rated power: 10W
Maximum switching voltage : 100V DC / AC
Maximum switching current: 0.5A
Maximum breaking voltage: 220V DC / AC
Maximum carrying current: 1A
Maximum contact resistance: 100m Ohm
Temperature: -20 / + 80 Celsuis
Float ball
material : PP Float body material: P.P.
Thread diameter (approx.): 9.5mm / 0.374 "
Switch body size: 23.3x57.7mm / 0.9" x 2.27 "(Max D * H)
Cable length : 36cm / 14.2"
Color : White
Net Weight: 70g
