Solar Panel 12VDC, 5W (320x190x18mm) (Poly)
Non-returnable
BD 13.500

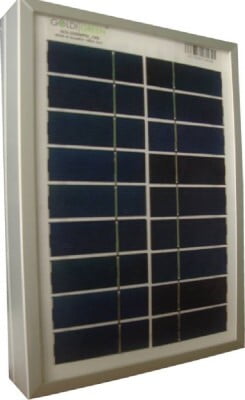

5 Watt Poly Crystalline Solar Panel
P 5 is a robust solar module with 18 solar cells.These modules can be used for off-grid solar applications. Our meticulous design and production techniques ensure a high-yield, long-term performance for every module produced. Our rigorous quality control and in-house testing facilities guarantee COPEX Solar’s modules meet the highest quality standards possible.
- Power supply for remote telecommunication equipment
- Traffic, security environment, and other remote monitoring and signaling systems
- Water pumping systems
- Rural area applications
- Other off-grid applications
Features
- Residential roof-top systems
- Commercial/industrial building roof-top systems
- Large on-grid and off-grid solar power stations
- Rural area applications
- Other on-grid and off-grid applications
Increased system reliability, secured investment
- Long term system reliability with IP67 Junction Box
- Robust frame to hold 5400 Pa load
- Salt Mist, ammonia and blowing sand resistance, apply to seaside, farm and desert environment
Extra value to customers, more benefits
- Dedicated customer support teams are staffed by technical support engineers and after-sale customer service representatives.
- 90% power output over 20 years warranty
- 80% power output over 30 years warranty
Choose Quantity
Product Details
SPECIFICATION | ||
Electrical Specification | Nominal maximum power | 5W |
Optimum operating Voltage | 8.8V | |
Optimum Operating Current (Imp) | 0.57A | |
Open Circuit Voltage (Voc) | 10.8V | |
Short Circuit Current (Isc) | 0.62A | |
Operating Temperature | -40°C~+85°C | |
Maximum System Voltage | 1000V (IEC)/600V (UL) | |
Maximum Series Fuse Rating | 10A | |
Power Tolerance | ±5W | |
Temperature Cofficient | Pmax | -0.45/oC |
Voc | -0.35/oC | |
Isc | -0.060/oC | |
NOCT | 45oC | |
Mechanical Data | Cell Type | Poly crystalline |
Cell Arrangement | 18 (2×9) | |
Dimensions | 320x190x18mm | |
Weights | 0.5 (kg) | |
Front Cover | Tempered glass | |
Frame material | Anodized aluminum alloy | |
