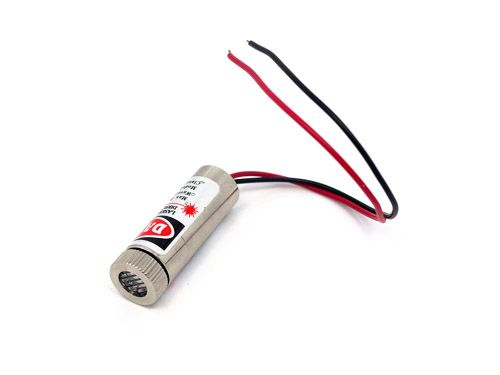

Laser Module, 9mm, 3v, 650nm, 5mW, Red Point

Specifications

• Output Power: Min 2.5mW, Typical 3.0mW, Max 5.0mW

• Working current: Min 10mA, Typical 20mA, Max 25mA

• Working voltage: Min 2.3VDC, Typical 4.5VDC, Max 8.0VDC

• Wavelength: 650nm

• Working Temperature: Min -15℃, Typical 25℃, Max 35℃

• Storage Temperature: Min -20℃, Max +25℃

• Focused Dot width:<2mm spotting 3 meters away.

• Outline Dimension: 12mm(Diameter) x 35mm(Length)

• Practical test for point head: reflection visible to random target >1000m
