Digital Multimeter Model# 3
Non-returnable
BD 24.000

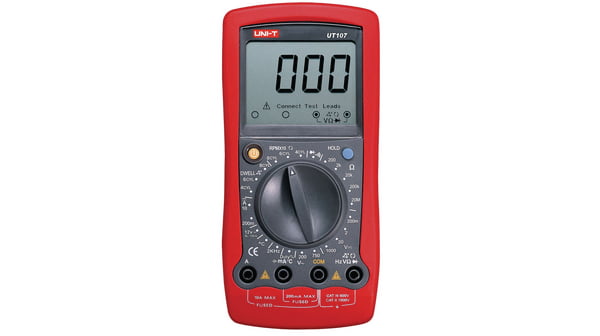

The Uni-Trend UT107 is an automotive tester and digital multimeter flawlessly combined into one, it can measure AC/DC voltage, DC current, resistance, temperature in Celsius, as well as diode check and continuity test. For automotive testing, you can use it to measure dwell angle and RPM up to 10,000. One of its unique function is the 12V battery tester with a built-in load.
Specifications:
DC Voltage: 200 mV, 2V, 20V ±0.5% 1000V ± 0.8%, Impedance: 10 M ohm
AC Voltage: 200V/750V at 40 to 400Hz ±1.5%, Impedance: 10 M ohm
DC Current: 200mA ± 0.8% / 10A ± 1.2%
Resistance: 200 ohm, 2K ohm, 20K ohm, 200K ohm ± 0.8% 20M ohm ±1.5%
Temperature: -40 to 1000 degrees C
12V battery test (with built-in load): ±3.0%
Diode Test
Continuity Test
Tachometer: 500 to 10,000 RPM ±3.0% (4, 6, and 8 Cylinder)
Dwell: 4, 6, and 8 Cylinder ±3.0%
Dimensions: 179 x 88 x 39 mm
Weight: 380 grams
Specifications:
DC Voltage: 200 mV, 2V, 20V ±0.5% 1000V ± 0.8%, Impedance: 10 M ohm
AC Voltage: 200V/750V at 40 to 400Hz ±1.5%, Impedance: 10 M ohm
DC Current: 200mA ± 0.8% / 10A ± 1.2%
Resistance: 200 ohm, 2K ohm, 20K ohm, 200K ohm ± 0.8% 20M ohm ±1.5%
Temperature: -40 to 1000 degrees C
12V battery test (with built-in load): ±3.0%
Diode Test
Continuity Test
Tachometer: 500 to 10,000 RPM ±3.0% (4, 6, and 8 Cylinder)
Dwell: 4, 6, and 8 Cylinder ±3.0%
Dimensions: 179 x 88 x 39 mm
Weight: 380 grams
Choose Quantity
Product Details
Features:
Manual Range Control
Automatic Negative Polarity Indication
Test leads position indication
Data Hold
Low Battery Indicator
Over Range "1" Display
What's in the box:
UT107 Automotive tester
Test leads
Thermo probe
9V battery (installed)
User manual
Manual Range Control
Automatic Negative Polarity Indication
Test leads position indication
Data Hold
Low Battery Indicator
Over Range "1" Display
What's in the box:
UT107 Automotive tester
Test leads
Thermo probe
9V battery (installed)
User manual
