IC 7410, 74LS10, Triple 3-input NAND GATE
Non-returnable
BD 1.300
The IC 7410 is a high performance monolithic operational amplifier constructed on a single silicon chip. It is intended for a wide range of analog applications.The high gain and wide range of operating voltages provide superior performances in integrators, summing amplifiers and general feedback applications. The internal compensation network (6dB/octave) ensures stability in closed-loop circuits.

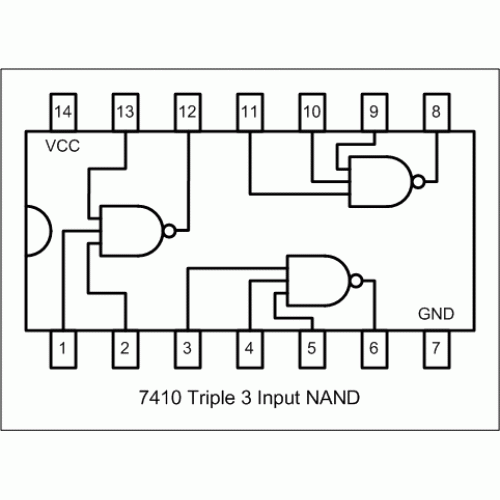

Three 3-Input NAND Gates in a 14-Pin DIP Package
Outputs Directly Interface to CMOS, NMOS and TTL
Large Operating Voltage Range
Wide Operating Conditions
Outputs Directly Interface to CMOS, NMOS and TTL
Large Operating Voltage Range
Wide Operating Conditions
Choose Quantity
Product Details
Absolute Maximum Ratings:
Supply Voltage: 7V
Input Voltage: 5.5V
Operating Free Air Temperature: 0oC to +70oC
Storage Temperature Range: -65oC to +150oC
Supply Voltage: 7V
Input Voltage: 5.5V
Operating Free Air Temperature: 0oC to +70oC
Storage Temperature Range: -65oC to +150oC
