Telephone Wiring System Testing, RJ11 connectors testing function, cable and wire continuity testing
BD 25.500

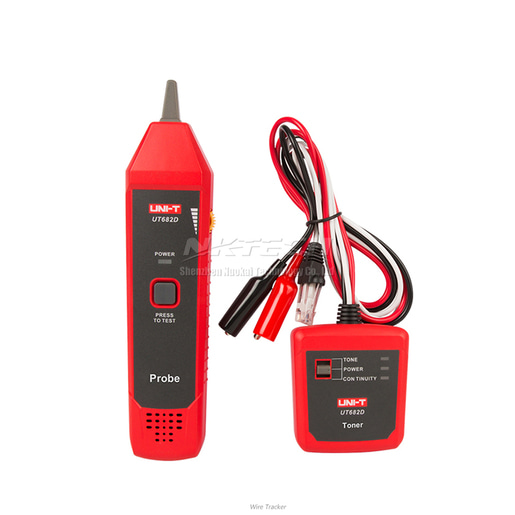

UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation.
UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.
Applications:
It can used to test continuity and check polarity on telephone lines.
Features:
UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation.
UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.
PACKAGE CONTENTS
- Transmitter — 1 pc.
- Receiver — 1 pc.
- Manual — 1 pc.
Choose Quantity
Product Details
TECHNICAL SPECIFICATIONS
| Telephone lines tracking distance | ≥3000 m |
| Polarity indication for telelphone lines | DCV function, range: ±(5V~52V) |
| Telephone lines and LAN cables distinction | Jacks distinction |
| Transmitter output voltage | 8V DC with a new battery |
| Transmitter power supply | 9V battery |
| Receiver power supply | 9V battery |
| Max receiver standby current | ~10mA |
| Max receiver operating current | <40mA (AC, RMS) |
| Transmitter input voltage protection | 60V DC |
| Size | Transmitter: 74mm x 68mm x 28mm Receiver: 208mm x 47mm x 33mm |
| Weight | Transmitter: 150 g Receiver: 130 g |
