BTA41-600, Triac, 600V, 40A
Non-returnable
BD 5.500

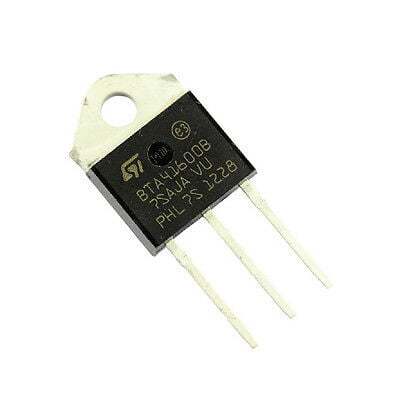

Triac BTA41-600B 600 Volt 40 Amp TOP-3
Choose Quantity
Product Details
Specifications
- Triac Type: Standard
- Voltage - Off State: 600 V
- Current - On State (It (RMS)) (Max): 40 A
- Voltage - Gate Trigger (Vgt) (Max): 1.3 V
- Current - Non Rep. Surge 50, 60 Hz (Itsm): 400 A, 420 A
- Current - Gate Trigger (Igt) (Max): 50 mA
- Current - Hold (Ih) (Max): 80 mA
- Configuration: Single
- Operating Temperature: -40°C to 125°C (TJ)
- Mounting Type: Through Hole
- Package: TOP-3 Insulated
- Base Number: BTA41
