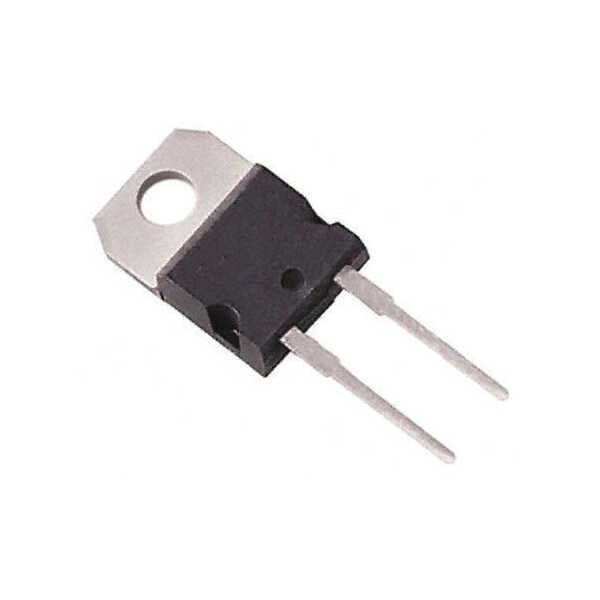

MBR1045 10A 45V Schottky Rectifier Diode

BD 1.000

The MBR1045 is a Rectifier Diode with moulded plastic body, metal silicon junction, majority carrier conduction and lead-free pure tin-plated terminals. The rectifier diode features solderable terminals as per MIL-STD-750, method 2026 standard, low power loss and high efficiency. Polarity as marked on the body.

High current capability
Low forward voltage drop
High surge capability
31V Maximum RMS voltage
45V Maximum DC blocking voltage
3°C/W Maximum typical thermal resistance

Applications

Power Management, Aerospace, Defence, Military

Choose Quantity

+ Add to Cart

Product Details

Maximum Ratings
Peak Repetitive Reverse Voltage: 45V
Working Peak Reverse Voltage: 45V
DC Blocking Voltage: 45V
Average Rectified Forward Current: 10.0A
Peak Repetitive Forward Current (Sq Wave, 20 kHz, TC = 135 deg.C): 10A
Non−Repetitive Peak Surge Current: 150A
(Surge Applied at Rated Load Conditions, Halfwave, Single Phase, 60 Hz)
Peak Repetitive Reverse Surge Current (2.0 us, 1.0 kHz): 1.0A
Voltage Rate of Change (Rated VR): 10,000V/us

Typical Electrical Characteristics:
Instantaneous Forward Voltage (max)
- iF = 10 Amps, Tj = 125 deg.C: 0.57V
- iF = 20 Amps, Tj = 125 deg.C: 0.72V
- iF = 20 Amps, Tj = 25 deg.C: 0.84V
Instantaneous Reverse Current (max)
- Rated dc Voltage, Tj = 125 deg.C: 15.0mA
- Rated dc Voltage, Tj = 25 deg.C: 0.1mA

Applications:
- Power Supply-Output Rectification
- Power Management
- Instrumentation
