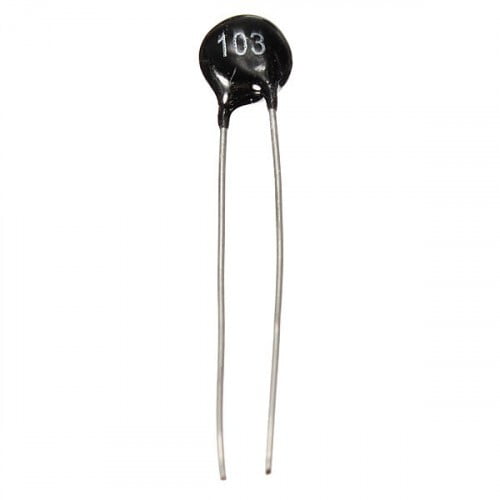

Thermistor 10KΩ (5mm)
BD 2.000
NTC thermistors are an inexpensive components boasting a broad resistance spectrum. With a lacquer coated thermistor disk and tinned copper terminal wires, the B57164 series thermistor is ideal for applications in temperature compensation, measurement and control.
Features and Benefits:
• Lacquer-coated Thermistor disk, upwards from beneath the disk, max. 2.0mm uncoated
• Stamped with resistance value and tolerance
Choose Quantity
Product Details
pecifications
| Attribute | Value |
|---|---|
| Temperature Coefficient Type | NTC |
| Thermal Coefficient | 4.7%/°C |
| Thermal Time Constant | 20s |
| Resistance @ 25 °C | 10 kΩ |
| Tolerance | ±5% |
| Application | Compensation, Measurement |
| Accuracy | ±3% |
| Maximum Power Rating | 450mW |
| Depth | 5mm |
| Dimensions | 5.5 (Dia.) x 5mm |
