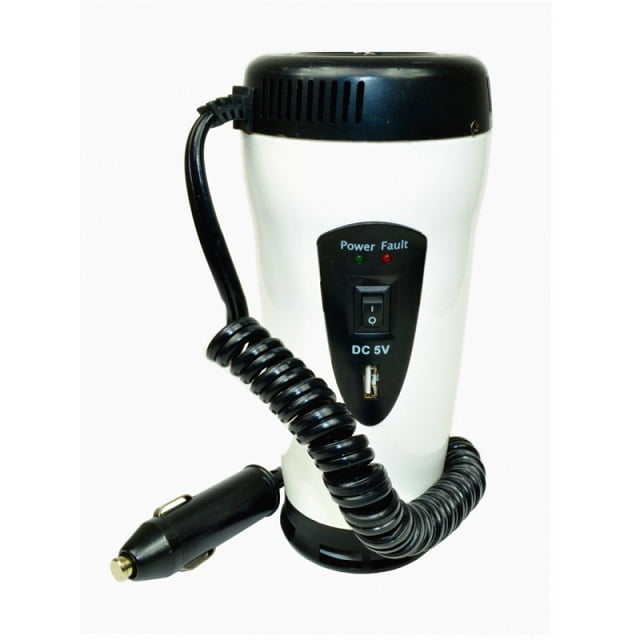

DC to AC Inverter 150/300W, Input 12VDC, Output 230VAC

Name: DC to AC Inverter 150/300W, Input 12VDC, Output 230VAC
Brand: VOLT POLSKA
SKU: vol/IPS/300/12V
Price: 21.5 BHD
Availability: InStock

BD 21.500

The IPS series of electronic inverters was designed for powering electronic devices that require 230V alternating voltage from batteries or car systems with 12 or 24V DC supply voltage.

The inverters are a perfect fit for places where it is impossible to connect to an electrical grid. The IPS series inverters deliver the so-called modified sine wave output. It is a square waveform, where the RMS value is identical to RMS of the sine wave in the electric grid. Thanks to that, it is possible to significantly reduce the footprint and to improve reliability of the device.

IPS inverters are only suitable for powering electrical and electronic devices with resistive loads, such as bulbs, heaters, electronic adapters, A-V equipment, etc.

They must not be used to connect any devices with transformers or induction motors, such as: certain power tools, home appliances, fluorescent tubes with electronic ballasts (EBs), transformer power supply units, pumps, etc.

Ensure correct polarization of the plugs connected to the battery (PLUS-PLUS and MINUS-MINUS). Incorrect polarization (PLUS-MINUS) may result in short circuit or damage to the inverter or any connected loads. After correct connection and start-up, a green diode next to the power button on the inverter should light up. If no diode lights up, check the connection of the power supply cables. If the inverter is out of order or an external factor causes errors in operation (short circuit, overload), a red diode will turn on and you will hear a sound alarm from the inverter.

Choose Quantity

+ Add to Cart

Product Details

General applications:

Cell charger - 5W-10W
Game console - 39W-100W
Camera charger - 3W-20W
Portable lamp - 8W-60W
Portable audio - 10W-40W
Laptop - 60W-120W
19 'TV - 100W-160W
Printer - 100W-200W
Fan - 80W-140W

Basic features of IPS 300 12V / 230V:
The IPS series of electronic voltage converters is used to supply electrical devices requiring 230V alternating voltage from batteries and automotive installations with a direct voltage of 12V . The converters are ideal for places where it is not possible to directly connect to the power grid.
The IPS series converters produce so-called modified sine wave. It is an alternating voltage with a rectangular waveform whose effective value is identical to the effective value of the sinusoidal wave occurring in the power network.
By using this method of voltage generation, it is possible to significantly reduce the price and increase the reliability of the entire device.
