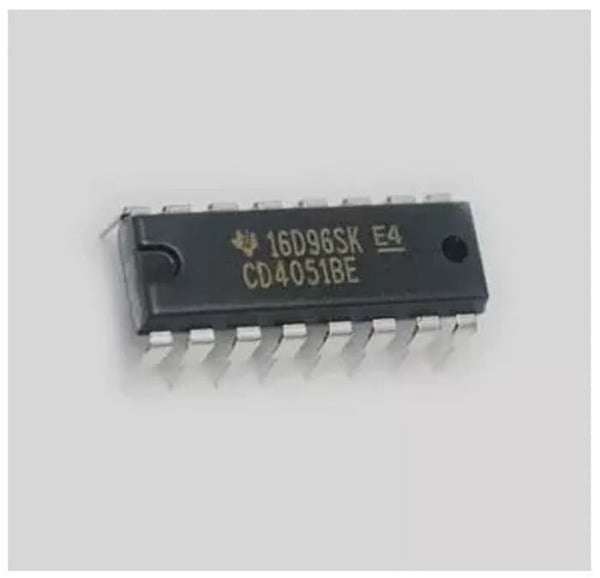

IC CD4051 (SINGLE 8-CH ANALOG MULTIPLEXER)
BD 1.400
CD4051BMS, CD4052BMS and CD4053BMS analog multiplexers/demultiplexers are digitally controlled analog switches having low ON impedance and very low OFF leakage current. Control of analog signals up to 20V peak-topeak can be achieved by digital signal amplitudes of 4.5V to 20V (if VDD-VSS = 3V, a VDD-VEE of up to 13V can be controlled; for VDD-VEE level differences above 13V, a VDDVSS of at least 4.5V is required). For example, if VDD = +4.5V, VSS = 0, and VEE = -13.5V, analog signals from - 13.5V to +4.5V can be controlled by digital inputs of 0 to 5V. These multiplexer circuits dissipate extremely low quiescent power over the full VDD-VSS and VDD-VEE supply voltage ranges, independent of the logic state of the control signals. When a logic “1” is present at the inhibit input terminal all channels are off. The CD4051BMS is a single 8 channel multiplexer having three binary control inputs, A, B, and C, and an inhibit input. The three binary signals select 1 of 8 channels to be turned on, and connect one of the 8 inputs to the output. The CD4052BMS is a differential 4 channel multiplexer having two binary control inputs, A and B, and an inhibit input. The two binary input signals select 1 of 4 pairs of channels to be turned on and connect the analog inputs to the outputs. The CD4053BMS is a triple 2 channel multiplexer having three separate digital control inputs, A, B, and C, and an inhibit input. Each control input selects one of a pair of channels which are connected in a single pole double-throw configuration. The CD4051BMS, CD4052BMS and CD4053BMS are supplied in these 16 lead outline packages: Braze Seal DIP *H4X †H4T Frit Seal DIP H1E Ceramic Flatpack H6W *CD4051B Only †CD4052B, CD4053 Only
Applications
• Analog and Digital Multiplexing and
Demultiplexing
• A/D and D/A Conversion
• Signal Gating
• Factory Automation
• Televisions
• Appliances
• Consumer Audio
• Programm
Choose Quantity
Product Details
Features
1• Wide Range of Digital and Analog Signal Levels
– Digital: 3 V to 20 V
– Analog: ≤ 20 VP-P
• Low ON Resistance, 125 Ω (Typical) Over 15 VP-P
Signal Input Range for VDD – VEE = 18 V
• High OFF Resistance, Channel Leakage of
±100 pA (Typical) at VDD – VEE = 18 V
• Logic-Level Conversion for Digital Addressing
Signals of 3 V to 20 V (VDD – VSS = 3 V to 20 V)
to Switch Analog Signals to 20 VP-P (VDD – VEE =
20 V) Matched Switch Characteristics, rON = 5 Ω
(Typical) for VDD – VEE = 15 V Very Low Quiescent
Power Dissipation Under All Digital-Control Input
and Supply Conditions, 0.2 µW (Typical) at
VDD – VSS = VDD – VEE = 10 V
• Binary Address Decoding on Chip
• 5 V, 10 V, and 15 V Parametric Ratings
• 100% Tested for Quiescent Current at 20 V
• Maximum Input Current of 1 µA at 18 V Over Full
Package Temperature Range, 100 nA at 18 V and
25°C
• Break-Before-Make Switching Eliminates Channel
Overlap
