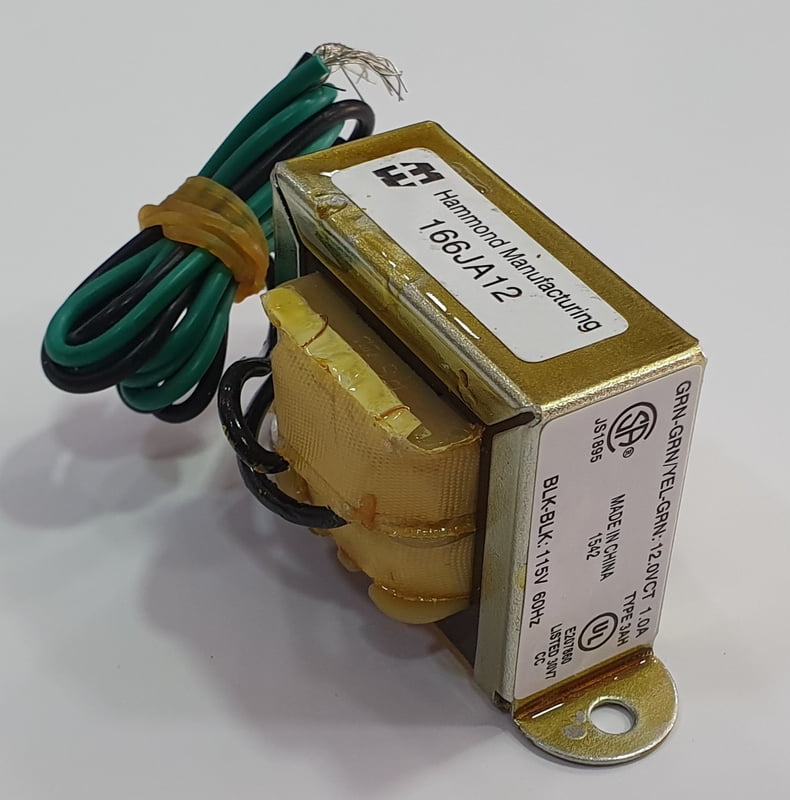

Transformer 12VA 115VAC 1A
Non-returnable
BD 7.500
Features
- Economical single primary 115 VAC, 60 Hz. (or 117 50/60 Hz. see table) - (If you require
- 117/234 or 50/60 Hz. operation or dual secondaries check out our versatile 266 Series.
- Most secondaries are center tapped (C.T.), VAC (RMS) - see table for details.
- Open style, channel bracket, two hole chassis mount.
- Minimum 6" long leads.
- Dual bobbin design - no electrostatic shield required.
- We use Class B insulation (130 degrees, C) for extra protection - UL listed as a Class A
- (105 degree, C) design
- Hi-Pot test of 2,000V RMS.
- UL listed.
- CSA certified.
Choose Quantity
Product Details
Product Technical Specifications
| EU RoHS | Compliant |
| ECCN (US) | EAR99 |
| Part Status | Active |
| Mounting | Flange Mount |
| Transformer Type | Low Voltage Power Transformer |
| Primary Configuration | Single |
| Secondary Configuration | Single |
| Secondary Side Current (mA) | 1000 |
| Primary Side Voltage (V) | 115 |
| Secondary Side Voltage (V) | 12 |
| High Potential | 2000Vrms |
| Power Rating | 12VA |
| Lead Style | Wire Lead |
| Number of Terminals | 5 |
| Product Length (mm) | 71.37 |
| Product Height (mm) | 42.93 |
| Product Depth (mm) | 41.4 |
