BNC Plug, Male, Straight, 75Ω, for Cables RG59, RG62, RG71, URM70, URM90
BD 0.900

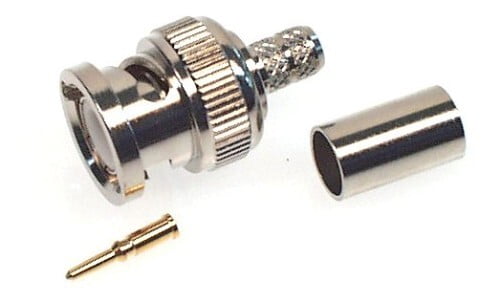

High Definition BNC Straight Crimp Plugs
A series of high definition machined 75 Ω BNC connectors from Coax Connectors. These straight crimp plugs have gold plated brass centre contacts in a nickel plated brass body. The BNC connectors meet standards SMPTE 292M and 424M version 1.1. This range of BNC connectors operate within a frequency range up to 4.5 GHz. Part number 916-0555 operates with in the 12GHz frequency range. Typical applications for these high-quality connectors would include broadcast including Ultra High Definition (4K), Telecom, instrumentation and security.
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Coaxial Connector Type | BNC Connector |
| Gender | Male |
| Mounting Type | Cable Mount |
| Impedance | 75Ω |
| Termination Method | Crimp |
| Body Orientation | Straight |
| Cable Type | BD SD11, BELDEN 1694A, BELDEN 1694F, Draka 1.0/4.8A/F, Image 1000 |
| Size | Standard |
| Bulkhead | No |
| Operating Frequency | 0 to 4.5GHz |
| Body Plating | Nickel |
| Contact Material | Brass |
| Contact Plating | Gold |
