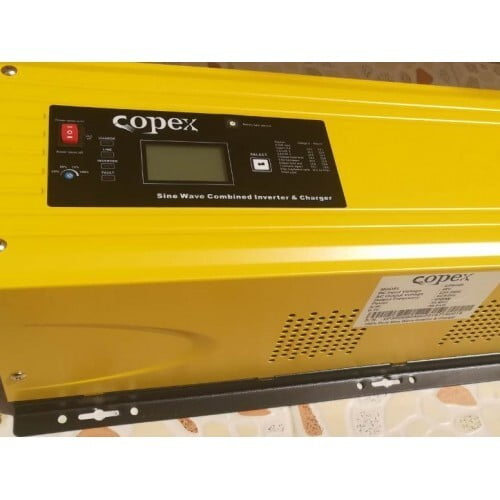

DC to AC Inverter Pure Sine Wave 6000W, Input 48VDC, Output 230VAC

SPECIFICATION

Input Voltage Waveform:  Sinusoidal ( Utility or generator)

Nominal Input Voltage: 230 Vac (120VAC selectanle)

Low Line Disconnect:  184 Vac±4%

Low Line Re connect:  294Vac±4%

Max Ac- Input Voltage: 265Vac±4%

Nominal Input Frequency:  255Vac±4%

Low Line Frequency Re-connect:  270Vrms

Low Line Frequency Disconnect:    50Hz/60Hz(Auto detection)

High Line Frequency Re-connect  :  58+0.3Hz for 60Hz;48+0.3Hz for 50Hz;

Line Mode Specification

Output Voltage Waveform  57+0.3Hz for 60Hz;47+0.3Hz for 50Hz;

Over-Load Protection (SMPS load):  64+0.3Hz for 60Hz;54+0.3Hz for 50Hz;

Output Short Circuit Protection:    65+0.3Hz for 60Hz;55+0.3Hz for 50Hz;

Efficiency (Line Mode): As same as Input Waveform

Transfer Switch Rating:  Circuit Breaker

Transfer Time (Ac to Dc):  Circuit Breaker

Pass Through Without Battery:  >95%

Max Bypass Overload Current:  30A

Invert Mode Specification:  Output Voltage Wave Form  Sine Wave

Rated Output Power (VA):  6000

Rated Output Power (W):  6000

Power Factor:  0~1.0

Nominal Output Voltage (V):  230Vac

Nominal Output Frequency (Hz):  50Hz±0.3Hz

Auto Tracking Main Frequency (Hz):  Yes (Following Main First Connection) 50Hz @ 48-54Hz; 60Hz @ 58-64Hz

Auto Voltage Regulation:  ±10%rms

Nominal Efficiency:  >80%

Over Load Protection (SMPS load):  (110%<load<125%)±10%:Fault (shutdown output) after 15 minutes; (125%<load<150%)10%:  Fault (shutdown output after 60s; Load>150%±10%: Fault (shutdown output) after 20s

Invert Mode Specification

Surge rating (10s):  18000VA

Capable of Starting Electric Motor:  3HP

Output Short Circuit Protection:  Current Limit (Fault after 10s)

Inverter Breaker Size:  30A

Nominal Dc Input Voltage:  48V

Min DC Start Voltage:  10V/20V/40V

Low Battery Alarm:  10.5Vdc±0.3Vdc for 12V battery: 21.0Vdc for 24V battery: 42.0Vdc±0.6Vdc for 48V battery

Low DC Input Shut-Down:  10.0Vdc±0.3Vdc for 12V battery: 20.0Vdc for 24V battery: 40.0Vdc±0.6Vdc for 48V battery

High DC Input Alarm & Fault:  16.0Vdc±0.3Vdc for 12V battery: 32.0Vdc for 24V battery: 64.0Vdc±0.6Vdc for 48V battery

High DC Input Recovery:  15.5Vdc±0.3Vdc for 12V battery: 31.0Vdc for 24V battery: 62.0Vdc±0.6Vdc for 48V battery

Power Saver:  Load£25W(Enable on “P/S auto” setting of Remote contro)

Charge Mode Specification:  Nominal Input Voltage  230Vac

Input Voltage Range:  196-243Vac

Nominal Output Voltage:  According to the battery type

Charge Mode Specification

Nominal Charge Current:  50A

Battery Initial Voltage:  ±5Adc

Charge Short Circuit Protection:    0-15.7Vdc/31.4Vdc/62.8Vdc (can operate with OV battery)

Charge Current Regulation:  Circuit breaker

Over Charge Protection:    Bat. V£15.7Vdc/31.4Vdc/62.8Vdc, deep 0.5s every 1s & fault after 60s

Safety Certification:  CE

Operating Temperature Range:  FCC

Storage Temperature:  15°C below zero to 60°C

Operation Humidity:  5% to 95%

General Specification

Audible Noise:  60dB max

Cooling:  Forced air, variable speed fan

Size:  760x340x320

Weight:   Net/Gross (Kg) 45
