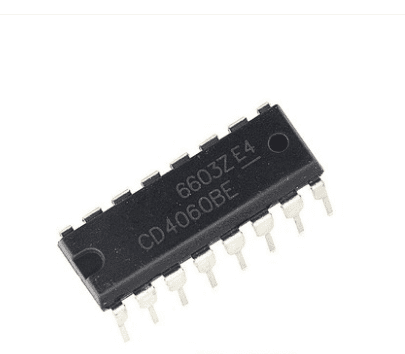

IC CD4060 (14-stage Binary Ripple Counter)
BD 1.400
D4060 IC is a 14-stage counter and counter is a binary ripple carry type. It is a CMOS logic-based binary counter belonging to a CD4000 series of integrated circuits. It consists of a 14-stage ripple carry binary counter along with an internal oscillator. Additionally, we can configure crystal oscillators with RC circuits or external crystal. Moreover, it has a reset circuit that can makes the counter start from all zero’s again. It operates over a power supply range of 3V to 15V. It is available in a variety of 16-pin packages which include PDIP, CDIP, SOIC, TSSOP.
CD4060 Binary Counter Features
- Schmitt triggered inputs which allows unlimited rise and fall times
- Fully Static operation with buffered inputs and outputs
- Counting range: 0 to 16383 (In decimal)
- Maximum Clock Frequency is 30MHz at 15V
- Medium speed operation: 8MHz typ. at VDD = 10V
- Pins and function compatible with TTL series
- Reset Propagation Delay: 25ns at 5V
- RC Oscillator Frequency of 690kHz Min. at 15V
Choose Quantity
Product Details
CD4060 Pinout diagram
CD4060 binary counter IC consists of 16 pins. Q4 – Q14 are output pins. These pins offer binary counter output on every positive edge of the clock cycle. Pins that we use to connect the oscillator circuit are Pin 9-10. This simple diagram shows a pin configuration diagram.
