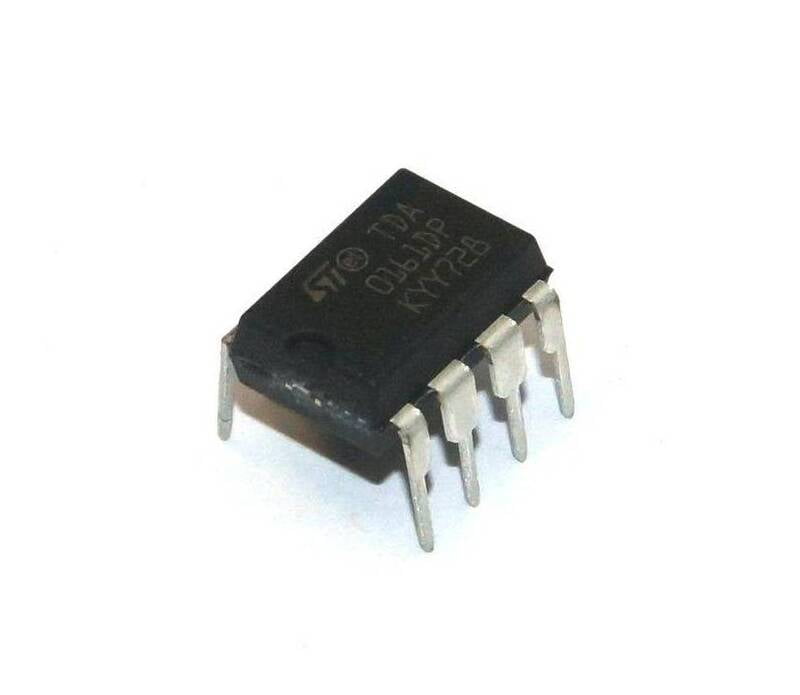

TDA0161DP Proximity Detector IC
BD 4.000
These monolithic integrated circuits are designed for metallic body detection by sensing variations in high frequency Eddy current losses. Using an externally-tuned circuit, they act as oscillators. The output signal level is altered by an approaching metallic object. The output signal is determined by supply current changes. Independent of supply voltage, this current is high or low, according to the presence or absence of a closely located metallic object.
Features:-
• 10mA Output Current
Oscillator Frequency 10MHz
Supply Voltage +4 to +35V
Choose Quantity
Product Details
Specification:-
| Symbol | Parameters | Rating | Units |
| VCC | Supply Voltage | 35 | V |
| TJ | Operating Temperature Range | 150 | °C |
| TSTG | Storage temperature range | –55 to 150 | °C |
