Fast Connector, 2 pins, 400v, 32A
The component in this series offers an all-rounder connection solution for solid, stranded and fine-stranded conductors with different cross sections. Ensuring practical, fast and safe connections for different types and sizes of wiring or conductors.
Features & Benefits
Fast and safe connecting
No tools needed
Product Application Information
Fast and safe connections for mains power or automotive wiring such as light fixtures, speakers and gates.

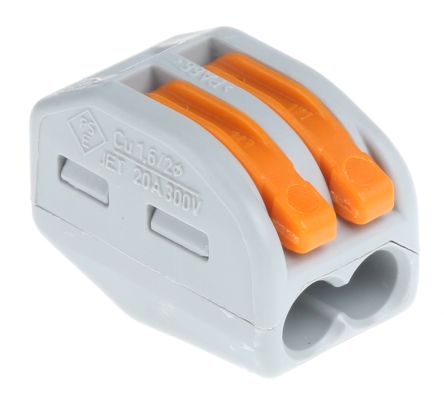

222 Series Wago Connectors
The 222 series Wago connectors offer a tool free and compact solution for connecting assembled terminal blocks. The connection of up to three stripped fine stranded conductors up to 2.5 mm². The integrated orange lever acts as a sturdy clamp when in the rest position, preventing a connected conductor accidentally become loose or damaged, making them a really handy for free wiring.
9 mm to 10 mm stripped length
Side entry wiring of up to 3 connection points
20A Current Rating, 600 V measured voltage
Cutting guide underneath for stripping off insulation on wires.
2.5 mm² max cross section
Product Application
These handy electronics are the clever and super easy alternative to wire nuts electricians use to bind wires together. No screw drivers required. Ideal for looping light fittings and splitting off circuits.
You can also use them for mains wiring from 12AWG down to 28 AWG.
| Attribute | Value |
|---|---|
| Series | 222 Series |
| Number of Ways | 2 |
| Current Rating | 32A |
| Wire Size | 28 → 12 AWG |
| Material | Polyamide |
| Voltage Rating | 400 V |
