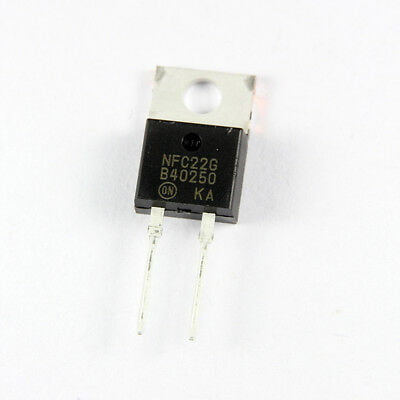

B40250 250V, 40A, Schottky Diode
BD 2.300
This ON Semiconductor Schottky power rectifier employs the Schottky barrier principle using a barrier metal to create the best forward voltage drop−reverse current exchange. Suitable for low voltage, high-frequency rectification as well as a freewheeling and polarity protection diode in a range of surface mount applications wherever a more compact size and weight are key.
• Pb-Free
• Designed for Optimal Automated Board Assembly
• Stress protection guarding
• Epoxy Moulded Case
• Lightweight 11.7mg package
Choose Quantity
Product Details
Specifications
| Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | D2PAK (TO-263) |
| Maximum Continuous Forward Current | 40A |
| Peak Reverse Repetitive Voltage | 250V |
| Diode Configuration | Single |
| Diode Type | Schottky |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 970mV |
| Number of Elements per Chip | 1 |
| Diode Technology | Schottky |
| Peak Reverse Recovery Time | 35ns |
| Peak Non-Repetitive Forward Surge Current | 150A |
