MPSA92 (High Voltage PNP Transistor)
The MPSA92 is a high voltage transistor, it can switch loads upto 300V with a very low trigger voltage (VBE) of only 5V, and this feature makes it suitable for digital electronics which operates at 5V. Apart from having high voltage rating of 300V they also have good operating speed of 50MHz with a low output capacitance of 3pF, but the trade off here is its low current gain of 50 hfe and low collector current of only 500mA.
Applications
- Low power amplifiers
- High voltage, low current switching
- Audio or other signal amplifiers
2D model of the component
If you are designing a PCB or Perf board with this component then the following picture from the Datasheet will be useful to know its package type and dimensions.

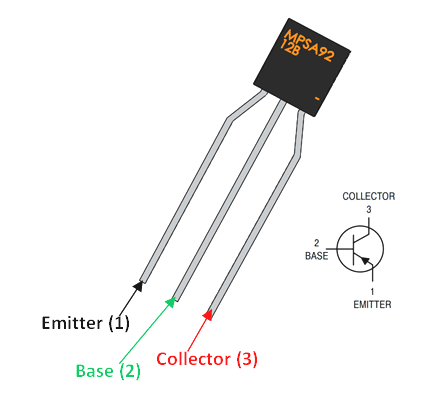

Pin Number | Pin Name | Description |
1 | Emitter | Current Drains out through emitter, normally connected to ground |
2 | Base | Controls the biasing of transistor, Used to turn ON or OFF the transistor |
3 | Collector | Current flows in through collector, normally connected to load |
