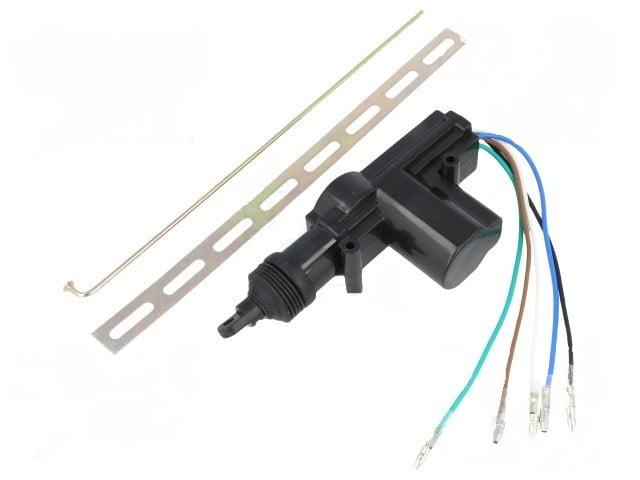

Central lock actuator 12VDC
BD 7.500
Compact motor for refitting a central door locking. Rugged housing made of heat resistant nylon. The rotating head simplified the assembly of the motor. Delivery includes the mounting hardware.
TECHNICAL SPECIFICATIONS
Operating voltage: 12 volts DC
Operating current under load: 2.1 Ampère
Operating temperature: -40 to +80°C
Length: 138mm
Width: 62mm
Height: 28mm
Hole space of the mounting hole: 58mm
Stroke: 18mm +/- 1mm
Lifting capacity: about 4kg
Response time: 0.3 sec. +/- 0.1 sec.
TECHNICAL SPECIFICATIONS
Operating voltage: 12 volts DC
Operating current under load: 2.1 Ampère
Operating temperature: -40 to +80°C
Length: 138mm
Width: 62mm
Height: 28mm
Hole space of the mounting hole: 58mm
Stroke: 18mm +/- 1mm
Lifting capacity: about 4kg
Response time: 0.3 sec. +/- 0.1 sec.
Choose Quantity
Product Details
COMPONENTS
Housing material: PA66 + GF30_ 34.8g
Plastic gear material: POM_ 9.2g
Motor: JQ280-21120-55.5
Motor material: Aluminum
Motor mounting plate: 2.5g
Fixing material: chromed steel
Cuff material: Rubber 4.4g
Housing material: PA66 + GF30_ 34.8g
Plastic gear material: POM_ 9.2g
Motor: JQ280-21120-55.5
Motor material: Aluminum
Motor mounting plate: 2.5g
Fixing material: chromed steel
Cuff material: Rubber 4.4g
