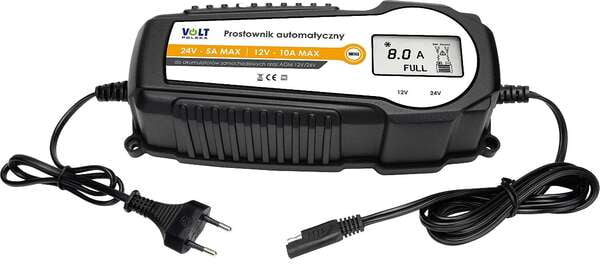

Automatic battery charger 12/24V 10A with LCD
BD 36.500
10 A automatic charger (rectifier) with LCD display for charging 12V (12 - 300 Ah) and 24V (12 - 150 Ah) lead-acid batteries . Such batteries include, among others: maintenance free VRLA batteries (AGM and GEL), acid batteries with liquid electrolyte or MF .
Technical parameters :
- Input voltage: 220 - 240 VAC ~ 50/60 Hz
- Output voltage: 12V / 24V
- Storage temperature range: 0 ° C to 40 ° C
- Security class : 2
- Maximum battery capacity: 12V 300Ah
- Maximum battery capacity: 24V 150Ah
- Rated power: 120W
- Charging current: 2A - 10A at 12V, 2A - 5A at 24V
- Housing protection class: IP 65
Choose Quantity
Product Details
Features :
- automatic and reliable control of the battery charge - after reaching a certain voltage or automatic drop of the charging current,
- voltage monitoring after charging - automatic resumption of charging in the event of a voltage drop on the battery, also after a loss of AC voltage,
- The charger eliminates the phenomenon of battery sulphation that may occur during charging,
- maintenance mode for 12V / SLA batteries with a capacity of 14-230Ah - the charger gives a constant voltage of 13.6V with current up to 5A - keeps the battery fully ready - ideal for electric vehicles, forklifts, etc.
- 13.6V / 5A power supply mode - power supply for devices powered by 12V.
- "winter" mode - guarantees full and effective battery charging, even in very low ambient temperature
- "reactivation / resuscitation" mode - a special charging mode - in the case of extremely discharged batteries, the charger uses a reduced charging current of 1.5A, until reaching a safe voltage allowing faster charging - the charger decides about the need to use this mode,
Package Contents :
- 1 x rectifier
- 2 x battery terminals (black and red)
- 1 x user manual
