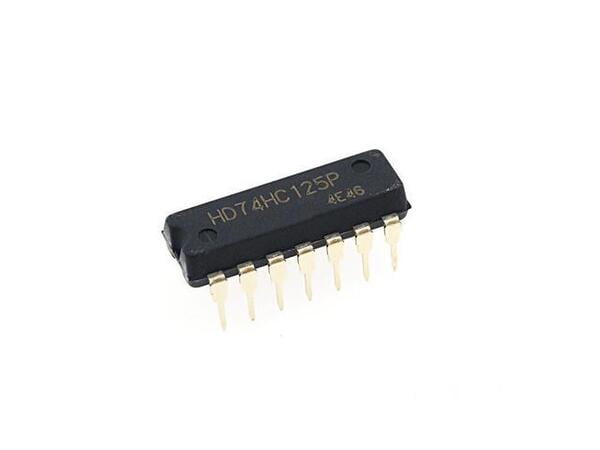

IC 74125 (Quad 3-STATE Buffer)
BD 1.500
This device contains four independent gates each of which performs a non-inverting buffer function. The outputs have the 3-STATE feature. When enabled, the outputs exhibit the low impedance characteristics of a standard LS output with additional drive capability to permit the driving of bus lines without external resistors. When disabled, both the output transistors are turned off presenting a high-impedance state to the bus line. Thus the output will act neither as a significant load nor as a driver. To minimize the possibility that two outputs will attempt to take a common bus to opposite logic levels, the disable time is shorter than the enable time of the outputs.
Choose Quantity
Product Details
Specifications:
- Product Category: Ear Pads and Line Drivers, Package / Case: PDIP-14, RoHS: Yes
- Supply voltage - Max: 6 V, supply voltage - min: 2 V, Maximum operating temperature: + 85 C
- High level Output current: - 7.8 mA, low level output current: 7.8 mA, minimum operating temperature: - 40 C
- Polarity: non-inverting, mounting style: Through Hole, Output type: 3-STATE, logic family: HC, Logic type: CMOS
- Number of input lines per chip: 4, Number of output lines: 4, Number of channels: 4, propagation delay: 150 ns at 2 V, 30 ns at 4.5 V, 25 ns at 6 V
