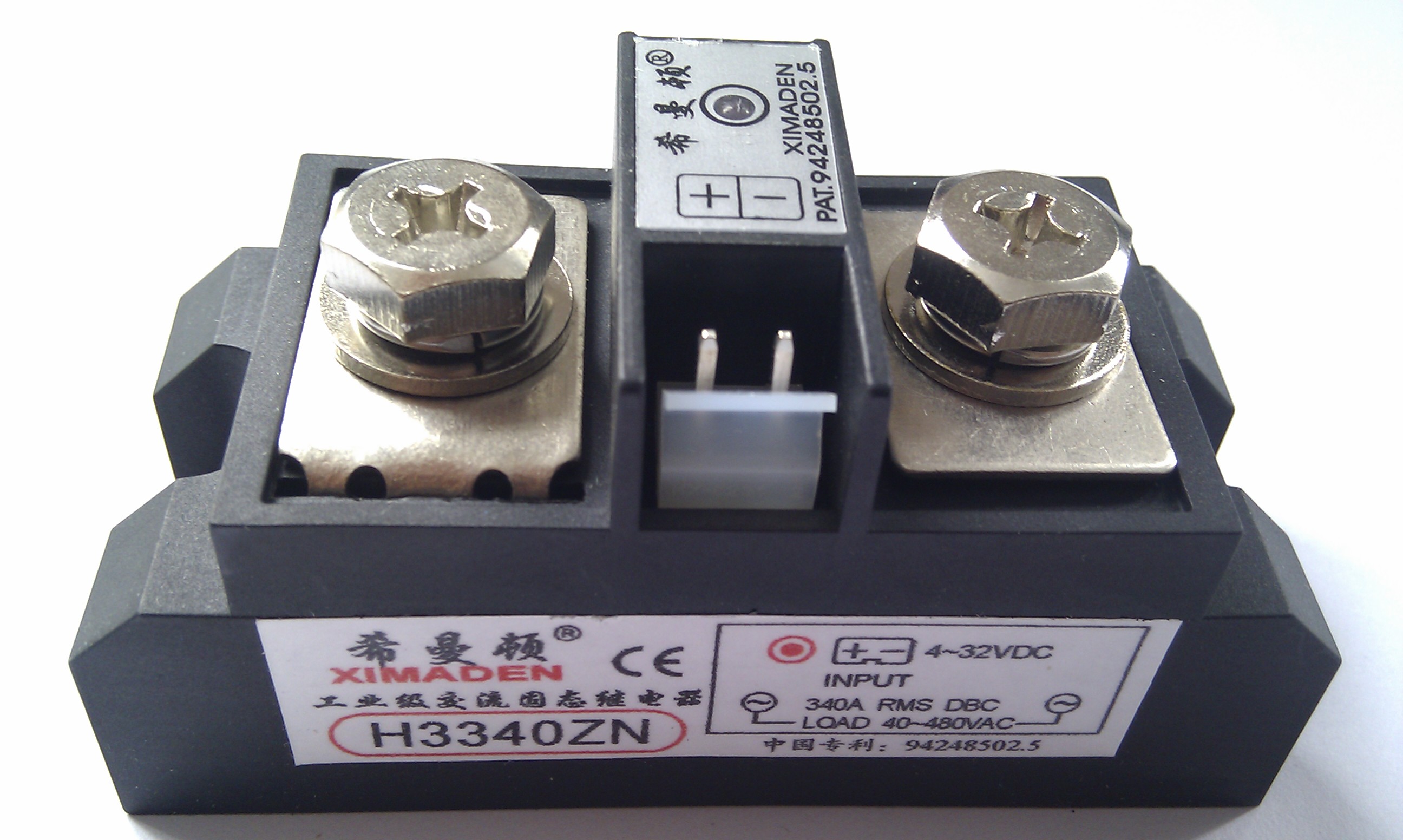

H3340ZN Solid State Relay (C)
Non-returnable
BD 33.500
Solid state relay (SSR) is an electronic switching device that switches states when an external voltage is applied. SSR has a small control signal that controls a larger load current or voltage. It consists of a sensor which responds to an appropriate input (control signal), a solid-state electronic switching device which switches power to the load circuitry, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts. The relay may be designed to switch either AC or DC to the load.
Choose Quantity
Product Details
Specification:
| Model | H3340ZN |
| Brand | XIMADEN |
| Rated current | 340A |
| Load voltage range | 40-440V |
| Control voltage range | 4-24V |
| LED indicator | Yes |
| Working method | Zero-crossing type |
| Size | 92*38*48 |
| Installation method | Screw |
| Mounting pitch | 80mm |
