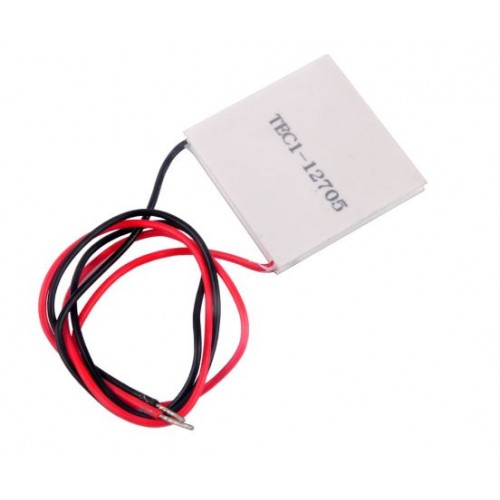

Thermoelectric cooling Peltier TECI-12705, 12V, 5A
A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas, for example, computer CPU, CCDs, portable refrigerators, medical instruments, and so on.
Specifications:
Model number: TEC1-12705
Voltage : 12V
Umax (V) : 15.4V
Imax (A) : 5A
QMax (W) : 45W
ΔTmax(°C)≥67
Dimensions : 50mm x 50mm x 4.8mm
Type: Cooling Cells
Usage: Refrigerator/Warmer
Operating Tips:
Max. Operating Temperature: 138°C
Don't exceed Imax or Vmax when operating module.
Please carry out moisture protection options (seeling) in final application use.
Life expectancy: 200,000 hours
Failure rate based on long time testings: 0.2%
Package included:
1 x Pully TEC1-12705 12V 5A 50mm x 50mm Heatsink Thermoelectric Peltier Cooler Square Ceramic Thermoelectric Cooling Module Plate Power Generator
