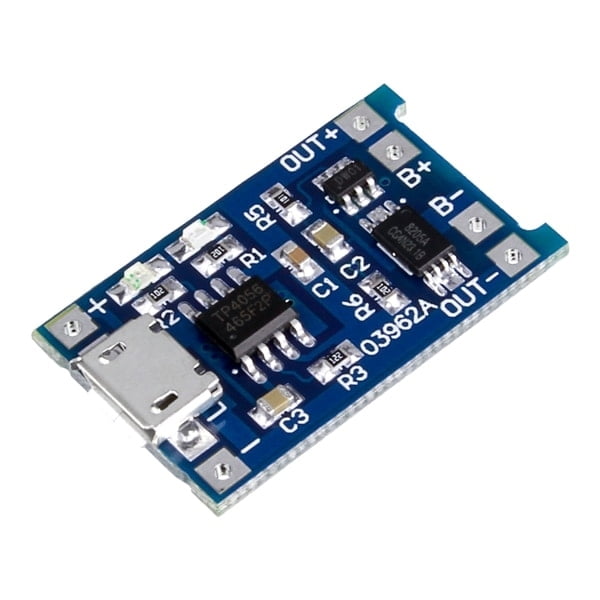

TP4056 Lithium Battery Charger and Protection Module
BD 6.500
The TP4056 is a complete constant-current/constant-voltage linear charger for single cell
lithium-ion batteries. Its SOP package and low external component count make the TP4056
ideally suited for portable applications. Furthermore, the TP4056 can work within USB and wall
adapter.
No blocking diode is required due to the internal PMOSFET architecture and have prevent to
negative Charge Current Circuit. Thermal feedback regulates the charge current to limit the die
temperature during high power operation or high ambient temperature. The charge voltage is
fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The
TP4056 automatically terminates the charge cycle when the charge current drops to 1/10th the
programmed value after the final float voltage is reached.
TP4056 Other features include current monitor, under voltage lockout, automatic recharge and
two status pin to indicate charge termination and the presence of an input voltage.
lithium-ion batteries. Its SOP package and low external component count make the TP4056
ideally suited for portable applications. Furthermore, the TP4056 can work within USB and wall
adapter.
No blocking diode is required due to the internal PMOSFET architecture and have prevent to
negative Charge Current Circuit. Thermal feedback regulates the charge current to limit the die
temperature during high power operation or high ambient temperature. The charge voltage is
fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The
TP4056 automatically terminates the charge cycle when the charge current drops to 1/10th the
programmed value after the final float voltage is reached.
TP4056 Other features include current monitor, under voltage lockout, automatic recharge and
two status pin to indicate charge termination and the presence of an input voltage.
Choose Quantity
Product Details
- Current- 1A adjustable.
- Charge precision- 1.5%.
- Input voltage- 4.5V-5.5V.
- Full charge voltage- 4.2V.
- Led indicator- red is charging Green is full charged.
- Input interface- micro USB & welding points
- Work temperature- -10° to +85°.
- Reverse polarity protection: No
- Size- small to 25X19X10mm.
