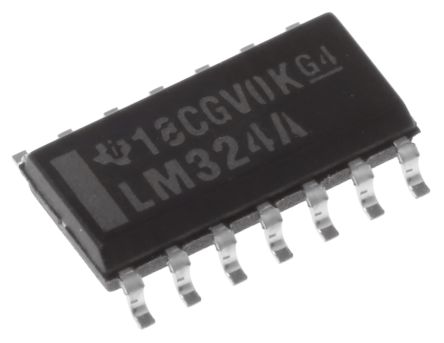

LM324AD Quadruple Operational Amplifier (SMD)
Non-returnable
BD 1.500
The LM324AD contains four Operational Amplifiers in SOIC-14 package. It has wide input supply range from 3 V to 32 V. These are high gain operational amplifiers. All the operational amplifiers, operate from a single power supply. They have low Supply Current drain of 0.8 mA, independent of Supply Voltage.
Choose Quantity
Product Details
- OP AMP, QUAD LOW POWER, SMD, SOIC14
- Op Amp Type: Low Power
- No. of Amplifiers: 4
- Slew Rate: 0.5V/µs
- Supply Voltage Range: ± 1.5V to ± 16V
- Amplifier Case Style: SOIC
- No. of Pins: 14
- Bandwidth: 1.2MHz
- Operating Temperature Min: 0°C
- Operating Temperature Max: 70°C
- Packaging: Each
- Base Number: 324
- Device Marking: LM324AD
- IC Generic Number: 324
- IC Temperature Range: Commercial
- Input Offset Voltage Max: 7mV
- Logic Function Number: 324
- MSL: MSL 1 - Unlimited
- Operating Temperature Range: 0°C to +70°C
- Operational Amplifier Features: high-gain frequency-compensated operational
- SVHC: No SVHC (16-Dec-2013)
- Supply Voltage + Nom: 15V
- Supply Voltage Max: 32V
- Supply Voltage Min: 3V
